Enclosures
| SKU:
A72XD6618FTCLP
A72XD6618FTCLP | Hoffman Enclosures | Enclosures, Panels & Fabrication

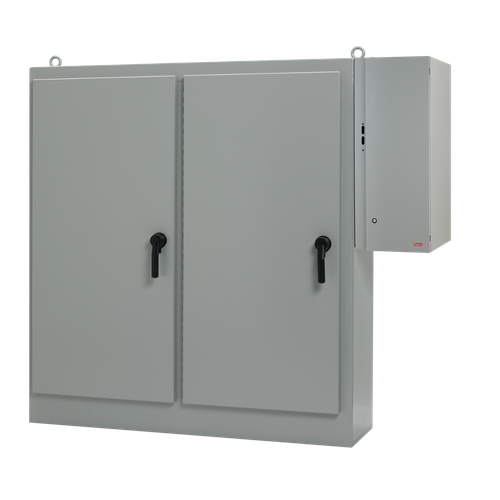

Sequestr External Disconnect Package, Type 12, 72.12x66.50x18.12, Steel
Retail Price
$20,128.71
Shipping calculated at checkout.
A72XD6618FTCLP is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 7 days
FREE SHIPPING
Couldn't load pickup availability
Description
The Sequestr External Disconnect Enclosure Package helps mitigate arc flash occurrences when working on interior components by isolating incoming power from the main enclosure. Shipped as one unit for new installations, the disconnect switch and fuse block/circuit breaker are mounted in the external enclosure, with terminal connections to bring power to the main enclosure.
Product Specifications
| Name | Value |
|---|---|
| Closure method | 3-Point Latching |
| Color | Gray |
| Country of origin | MX |
| Depth | 18.12 in |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure nema rating | NEMA 12, IP55 |
| Finish | Powder Coated |
| Gtin | 7.84E+11 |
| Height | 72.12 in |
| Material | Mild Steel |
| Mounting type | Free Standing |
| Product category | Enclosures, Panels & Fabrication |
| Product subcategory | Enclosures |
| Series | Sequestr |
| Short desc | Sequestr External Disconnect Package, Type 12, 72.12x66.50x18.12, Steel |
| Supplier part number | A72XD6618FTCLP |
| Thickness | 16 Gauge |
| Type | External Disconnect Package 2-Door Enclosure |
| Width | 66.5 in |
Features and Benefits
{'Features_and_Benefits_1': 'Interlocks doors of main control cabinet when disconnect switch is powered ON', 'Features_and_Benefits_2': 'Mechanical interlock on main control enclosure activated by master door prevents slave door from being opened first', 'Features_and_Benefits_3': 'Provision for pass-through power into the main enclosure', 'Features_and_Benefits_4': 'Preferred disconnect cutout', 'Features_and_Benefits_5': 'Quarter-turn, screwdriver slot latch on Sequestr Enclosure', 'Features_and_Benefits_6': 'Rugged PowerGlide Handle with three-point latch on main control enclosure', 'Features_and_Benefits_7': 'Concealed, easy-to-remove hinges', 'Features_and_Benefits_8': 'Grounding studs on body', 'Features_and_Benefits_9': 'Bonding provision on door', 'Features_and_Benefits_10': 'Conductive back panel included in Sequestr External Disconnect Enclosure'}
