Enclosures | SKU: A30R2410HCR

A30R2410HCR | nVent Hoffman | Enclosures, Panels & Fabrication

Name: A30R2410HCR
Brand: nVent Hoffman
SKU: HFE-A30R2410HCR
Price: 1552.91 USD
Availability: InStock

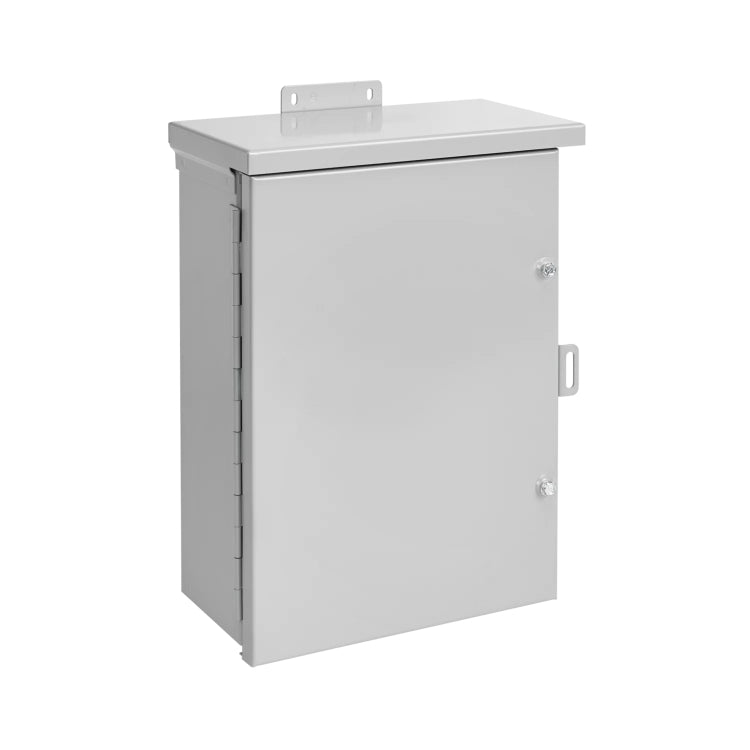

Medium Drip-Shield Hinged-Cover Type 3R, 30 x 24 x 10 Inch, Gray, Steel

$1,552.91

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Medium Drip-Shield Hinged-Cover, Type 3R, protects wiring and other electrical components in outdoor applications that require protection from rain, sleet, snow or dripping water. It offers the flexibility of securing enclosure with an optional padlock and collar studs for optional panel mounting. These enclosures have a size range of 16 x 12 x 6-Inch to 60 x 36 x 12-Inch

Product Specifications

Name	Value
Category	Metallic Enclosures
Color	Gray
Depth	10 Inch
Data Sheet	Download
Enclosure nema rating	Type 3R
Finish	Galvanized, Powder Coated
Height	30 Inch
Material	Mild Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	nVent Hoffman
Short desc	Medium Drip-Shield Hinged-Cover Type 3R, 30 x 24 x 10 Inch, Gray, Steel
Size	27 x 21 Inch
Supplier part number	A30R2410HCR
Thickness	14 Gauge
Width	24 Inch

Features and Benefits

Industry Standards: UL 50, 50E Listed, Type 3R, File No. E27567, cUL Listed Per CSA C22.2 No 94, Type 3R File No. E27567, NEMA/EEMAC Type 3R, IEC 60529, IP32 | Hasp and Staple Provided for Padlocking | Cover Fastened Securely with Captive Plated Steel Screws | No Gasketing or Knockouts | Enclosures are Finished with Paint Over Plated Surfaces | 16-Gauge Plated Steel Continuous Hinge has Stainless Steel Pin | Drip Shield Top and Seam-Free Sides, Front, and Back Protect From Rain, Snow, or Sleet
