Enclosures | SKU: A16148CHQRFG

A16148CHQRFG | Hoffman Enclosures | Enclosures, Panels & Fabrication

Name: A16148CHQRFG
Brand: Hoffman Enclosures
SKU: HFE-A16148CHQRFG
Price: 725.06 USD
Availability: InStock

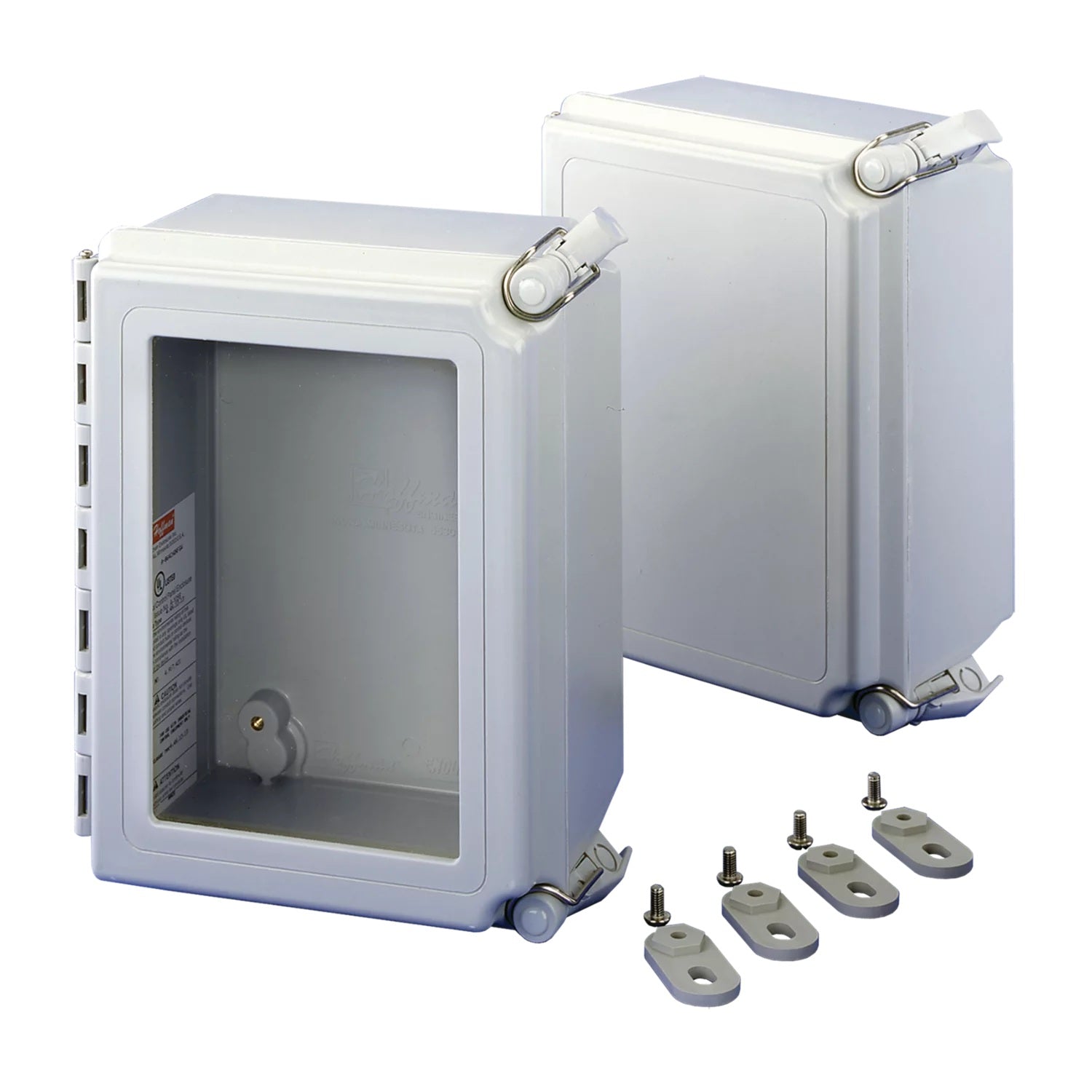

Continuous Hinge Cover with Quick-Release Latch Type 4X, 16x14x8, Fiberglass

$725.06

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.

Product Specifications

Name	Value
Category	Non-Metallic Enclosures
Closure method	Quick-Release Latch
Color	Light Gray
Depth	8 in
Data Sheet	Download
Enclosure nema rating	NEMA/EEMAC Type 4, 4X, 12, 13, IP66
Height	16 in
Inv mast uid	25628
Material	Fiberglass
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	nVent Hoffman
Short desc	Continuous Hinge Cover with Quick-Release Latch Type 4X, 16x14x8, Fiberglass
Supplier part number	A16148CHQRFG
Type	Hinge Cover Type 4X Fiberglass Enclosure
Variant weight	0
Width	14 in

Features and Benefits

{'Features_and_Benefits_1': 'Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties', 'Features_and_Benefits_2': 'Fiberglass is easily punched, drilled, filed or sawed', 'Features_and_Benefits_3': 'Gasket assures water-tight and dust-tight seal', 'Features_and_Benefits_4': 'Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure', 'Features_and_Benefits_5': 'Scratch-resistant polycarbonate windows are permanently bonded in place', 'Features_and_Benefits_6': 'Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits', 'Features_and_Benefits_7': 'Removable hinged cover attached to body with Type 316 stainless steel hinge pin', 'Features_and_Benefits_8': 'Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws', 'Features_and_Benefits_9': 'Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure', 'Features_and_Benefits_10': 'Hinge pin and bail are corrosion-resistant Type 316 stainless steel'}
