Data Center Products | SKU: A12R126HCR

A12R126HCR | nVent Hoffman | Enclosures, Panels & Fabrication

Name: A12R126HCR
Brand: nVent Hoffman
SKU: HFE-A12R126HCR
Price: 359.21 USD
Availability: InStock

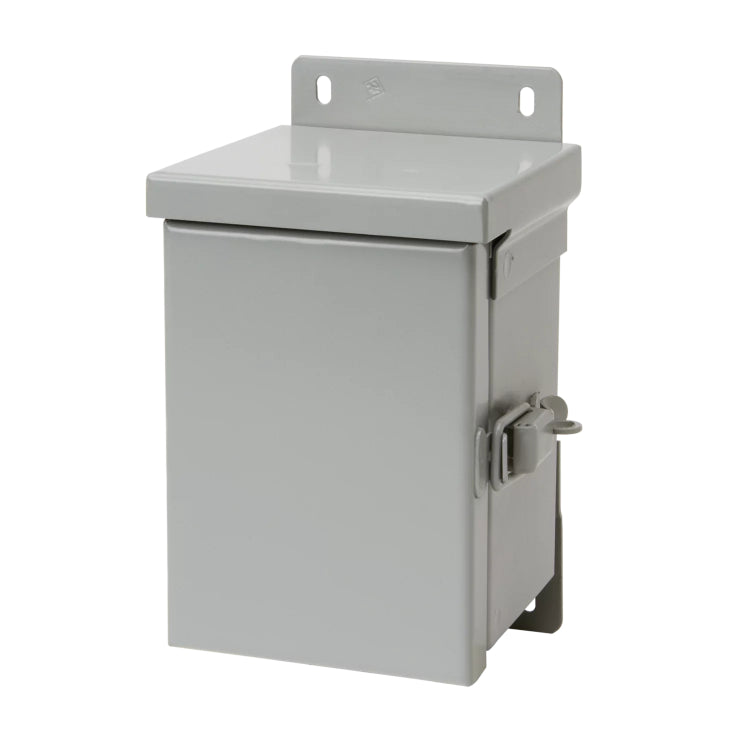

Hinge-Cover Small Drip-Shield Enclosure Type 3R, 12 x 12 x 6 Inch, Gray, Steel

$359.21

Shipping calculated at checkout.

In stock (1 units)

Usually ships next day

FREE SHIPPING

Description

Small Drip-Shield Hinged-Cover, Type 3R protects wiring and other electrical components in outdoor applications that require protection from rain, sleet, snow or dripping water. It offers the flexibility of securing enclosure with an optional padlock in its draw-pull catch and weldnuts for optional panel mounting. These enclosures have a size range of 6 x 4 x 4-Inch to 12 x 12 x 10-Inch

Product Specifications

Name	Value
Category	Metallic Enclosures
Closure method	Draw-Pull Latch
Color	Gray
Depth	6 Inch
Data Sheet	Download
Display name 1	Data Sheet
Enclosure nema rating	NEMA/EEMAC Type 3R, IP32
Features and benefits	Industry Standards: UL 50, 50E Listed, Type 3R, File No. E27567, cUL Listed Per CSA C22.2 No 94, Type 3R File No. E27567, NEMA/EEMAC Type 3R, IEC 60529, IP32 \| No Gasketing \| Knockouts on Bottom of Enclosure \| Weldnuts Provided for Mounting Optional Panels \| Plated Steel Hinge Has Stainless Steel Pin \| Provisions for Padlocking on Zinc-Plated Draw-Pull Catch \| Drip Shield Top and Seam-Free Sides, Front, and Back Protect From Rain, Snow, Or Sleet
Finish	Powder Coated
Height	12 Inch
In_stock	true
Margin	44
Material	Mild Steel
Mounting type	Wall Mount
P21 delete flag	false
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Restricted class id	NULL
Restricted item	false
Series	nVent Hoffman
Short desc	Hinge-Cover Small Drip-Shield Enclosure Type 3R, 12 x 12 x 6 Inch, Gray, Steel
Size	10.25 x 10.25 Inch
Strategic_value	10
Supplier part number	A12R126HCR
Thickness	16 Gauge
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	Y
Width	12 Inch

Features and Benefits

Industry Standards: UL 50, 50E Listed, Type 3R, File No. E27567, cUL Listed Per CSA C22.2 No 94, Type 3R File No. E27567, NEMA/EEMAC Type 3R, IEC 60529, IP32 | No Gasketing | Knockouts on Bottom of Enclosure | Weldnuts Provided for Mounting Optional Panels | Plated Steel Hinge Has Stainless Steel Pin | Provisions for Padlocking on Zinc-Plated Draw-Pull Catch | Drip Shield Top and Seam-Free Sides, Front, and Back Protect From Rain, Snow, Or Sleet
