Current Switches | SKU: RIBXLCA

RIBXLCA | Functional Devices | Power Monitoring & Protection

Name: RIBXLCA
Brand: Functional Devices
SKU: FND-RIBXLCA
Price: 80.20 USD
Availability: InStock

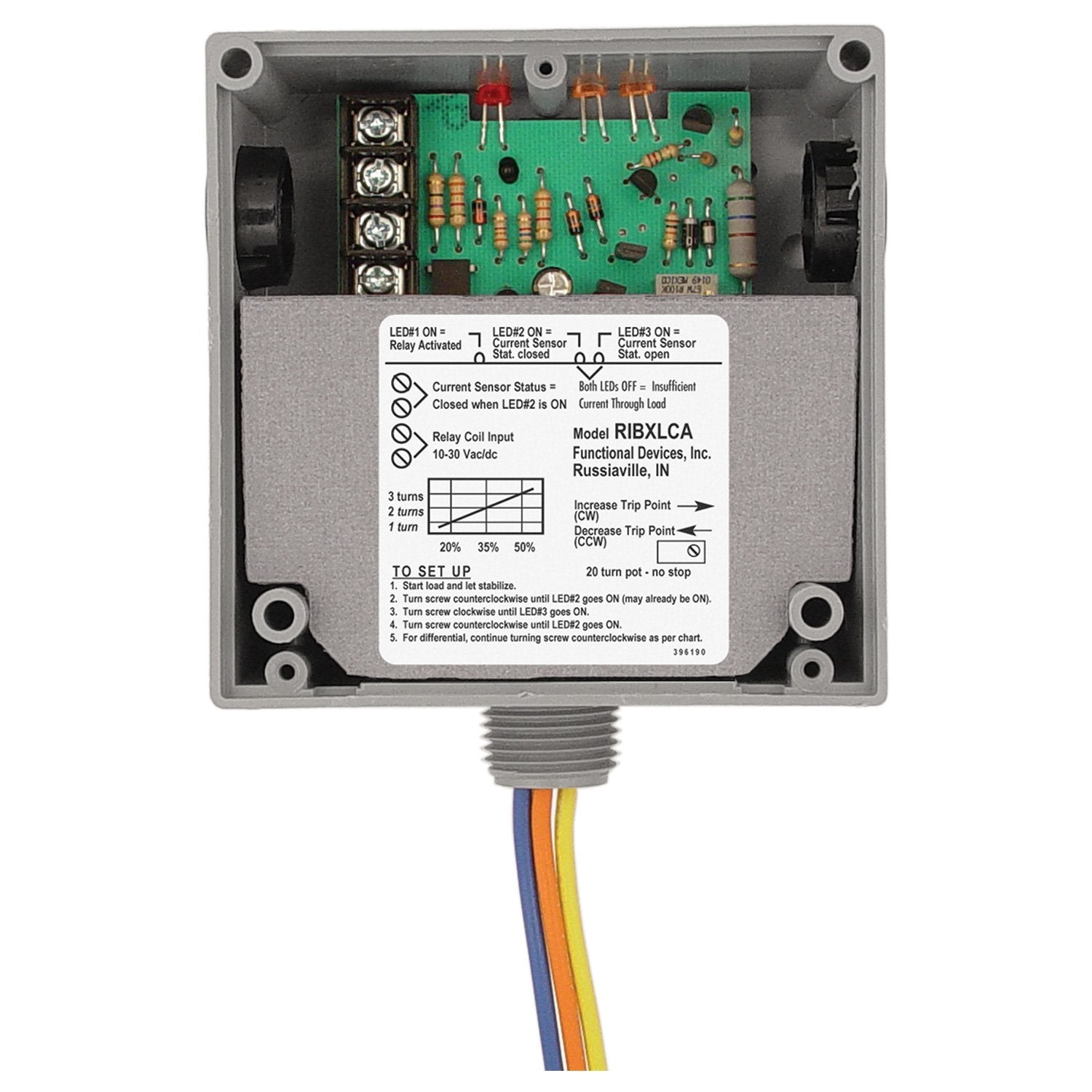

Ribxlc Series Enclosed Relay, 10 A, SPDT, 10-30 VAC/DC and Internal Adjustable AC Sensor

$80.20 $160.40

Shipping calculated at checkout.

In stock (4 units)

Usually ships next day

FREE SHIPPING

Description

Ribxlc series enclosed relay featuring 10 A and SPDT. Housed in a NEMA 1 enclosure, the device is rated for operation from -30°F to 140°F and 5–95% RH, non-condensing measuring 1.8" H x 4.0" W x 4.0" L with a sensing range of 0. Made in the USA.50-10 A.

Product Specifications

Name	Value
Application	Current Sensor and Relay
Category	Current Switches
Contact form	SPDT
Contact rating	10 Amp
Country of origin	US
Data Sheet	Download

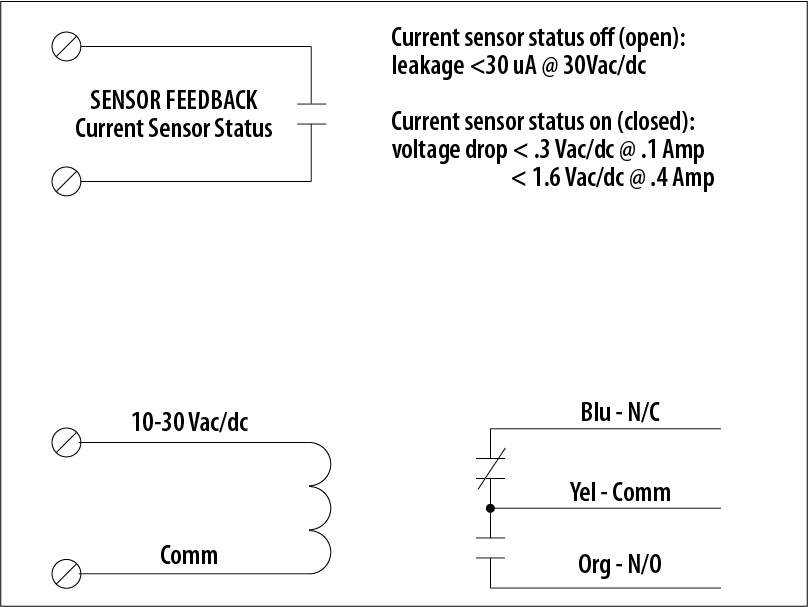

Wiring Diagram	Download
Enclosure type	NEMA 1
Height	1.8
Humidity range	5 to 95% (noncondensing)
Inv mast uid	124409
Length	4.0
Mounting type	Enclosed
Product category	Power Monitoring & Protection
Product subcategory	Current Switches
Sensing range	0.50-10 A
Series	Functional Devices
Short desc	Ribxlc Series Enclosed Relay, 10 A, SPDT, 10-30 VAC/DC and Internal Adjustable AC Sensor
Supplier part number	RIBXLCA
Temperature range	-30 to 140° F
Threshold	Adjustable
Type	Enclosed Relay with Internal AC Sensor
Variant weight	0.77
Width	4.0

Features and Benefits

{'Features_and_Benefits_1': 'Certification: cULus, CE, RoHS, Made in the USA', 'Features_and_Benefits_2': 'Operating Temperature -30 to 140 F', 'Features_and_Benefits_3': 'Wire Length 16 Inch', 'Features_and_Benefits_4': 'Wire Rating 600V'}
