Dwyer | SKU: VAT-6013

VAT-6013 | Dwyer | Flow

Name: VAT-6013
Brand: Dwyer
SKU: DWY-VAT6013
Price: 2547.30 USD
Availability: InStock

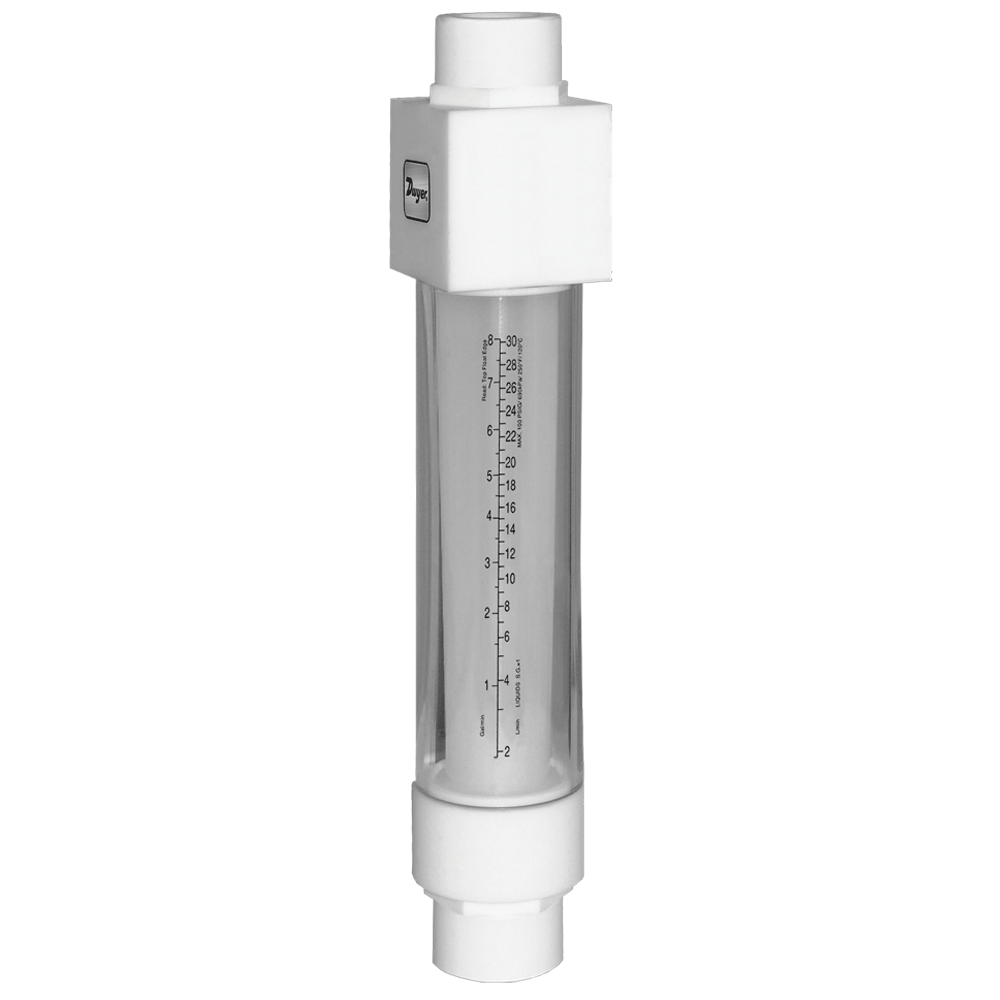

Variable Area Fluoropolymer Flowmeter, 3/4 Inch Female NPT, Flow Rate 40 Lpm (10.57 GPM)

$2,547.30

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series VAT Variable Area Fluoropolymer Flowmeter is ideal for high purity or corrosive liquid applications. This series of flowmeters features a 0 to 10 scale for flow indication. Each unit is individually leak tested to a leak integrity rating of 1 x 10-7 sccs Helium or better.

Product Specifications

Name	Value
Category	Flow Meters
Configuration	High Range without Valve
Data Sheet	Download
Inv mast uid	322571
Product category	Flow
Product subcategory	Gas Flow Meters
Range	40 LPM (10.57 GPM)
Series	Dwyer VAT Series
Short desc	Variable Area Fluoropolymer Flowmeter, 3/4 Inch Female NPT, Flow Rate 40 Lpm (10.57 GPM)
Size	3/4 in Female NPT
Supplier part number	VAT-6013
Type	Variable-Area Fluoropolymer Flowmeter
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Pressure Limit: 100 psig (6.9 bar)', 'Features_and_Benefits_2': 'Temperature Limits: 250 deg F (121 deg C)', 'Features_and_Benefits_3': 'Wetted Materials: Flowtube: PFA, Float and End Fittings: PTFE, Guide Rods: PCTFE', 'Features_and_Benefits_4': 'Service: Compatible Liquids', 'Features_and_Benefits_5': 'Scale: Direct Reading', 'Features_and_Benefits_6': 'All Units are Individually Leak Tested for No Additional Cost', 'Features_and_Benefits_7': 'Accuracy: +/- 5% FS @ 70 deg F (21.1 deg C) and 14.7 psia (1 atm Absolute)', 'Features_and_Benefits_8': 'Chemically Inert Wetted Components Yield Long Life Even in Corrosive Liquid Applications'}
