Dwyer | SKU: TE-A-3

TE-A-3 | Dwyer | Flow

Name: TE-A-3
Brand: Dwyer
SKU: TE-A-3
Price: 563.24 USD
Availability: InStock

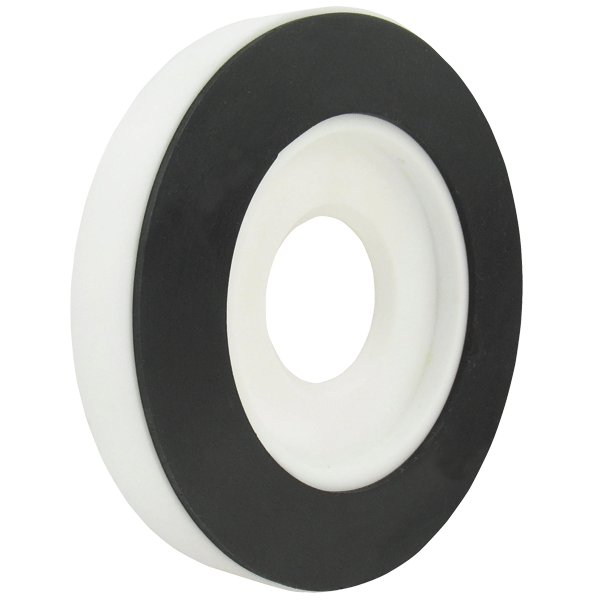

Dwyer, PTFE Orifice Plate Flowmeter, 1/2 Inch Line Size, 0.430 Inch Bore, 0.69 Beta, Water Capacity: 320 Inch d.p. W/C, 13.00 GPM Flow, Air Capacity: 32.77 SCFM @ 14.7 psia, 56.15 SCFM @ 20 psig, 107.47 SCFM @ 100 psig, 1 lb TE-A-3

$563.24

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series TE Orifice Plate Flowmeter offers one-piece PTFE construction similar to the OP and PE Series orifice plates, which incorporate a unique holder or carrier ring containing metering taps and integral gaskets. Available for line sizes from 1/2 Inch to 24 Inch, the Series TE orifice plate can be used with gases, liquids, corrosive, and high temperature fluids. The Series TE can be easily installed by slipping the unit between standard flanges (orifice flanges are not required). The Series TE was designed for use anywhere there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness.

Product Specifications

Name	Value
Capacity	320 Inch d.p. W/C, 13.00 GPM Flow \| 32.77 SCFM @ 14.7 psia, 56.15 SCFM @ 20 psig, 107.47 SCFM @ 100 psig
Category	Flow Meters
Configuration	1/2 Inch Line Size, 0.430 Inch Bore, 0.69 Beta
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Features and benefits	Wetted Material: Monolithic (Single Piece) Constructed Entirely of White PTPE for TE, Buna-N Gaskets \| Service: Compatible Gases and Liquids \| Orifice Plate Thickness 1/4 Inch Offering Greater Stability \| Weather Resistant \| Low Friction (Minimum Wear) \| Excellent Chemical Resistance \| Flame Retardant (without Factory Gaskets) \| Temperature Limits: -40 to 200 deg F (-40 to 93.3 deg C)
Material	PTFE, Buna-N Gaskets
P21 delete flag	false
Product category	Flow
Product subcategory	Gas Flow Meters
Range	Water: 320 Inch d.p. W/C, 13.00 GPM Flow, Air: 32.77 SCFM at 14.7 psia
Restricted class id	NULL
Restricted item	false
Series	Dwyer OP PE TE Series
Short desc	Dwyer, PTFE Orifice Plate Flowmeter, 1/2 Inch Line Size, 0.430 Inch Bore, 0.69 Beta, Water Capacity: 320 Inch d.p. W/C, 13.00 GPM Flow, Air Capacity: 32.77 SCFM @ 14.7 psia, 56.15 SCFM @ 20 psig, 107.47 SCFM @ 100 psig, 1 lb TE-A-3
Size	1/4 Inch Female NPT
Supplier part number	TE-A-3
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

Wetted Material: Monolithic (Single Piece) Constructed Entirely of White PTPE for TE, Buna-N Gaskets | Service: Compatible Gases and Liquids | Orifice Plate Thickness 1/4 Inch Offering Greater Stability | Weather Resistant | Low Friction (Minimum Wear) | Excellent Chemical Resistance | Flame Retardant (without Factory Gaskets) | Temperature Limits: -40 to 200 deg F (-40 to 93.3 deg C)
