Data Center Products | SKU: PUB-20

PUB-20 | Dwyer | Flow

Name: PUB-20
Brand: Dwyer
SKU: PUB-20
Price: 16346.30 USD
Availability: InStock

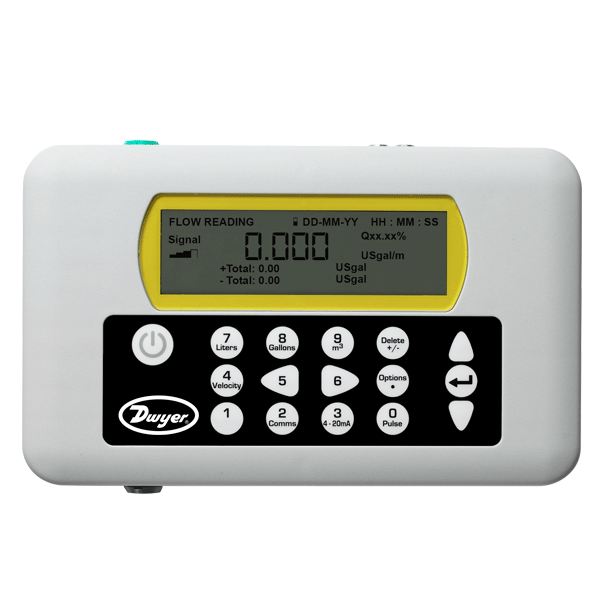

Dwyer, Portable Ultrasonic Flowmeter Converter Type B, 2 Inch to 40 Inch (50.7 to 1016mm) Pipe Diameter Range PUB-20

$16,346.30

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series PUB Portable Ultrasonic Flowmeter Kits utilize the transit-time difference for measuring flow rates in pipes non-invasively. They are compact and lightweight instruments incorporating the latest electronics and signal processing technologies, realizing high performance and easy operation. These devices are perfect for on-the-go flow monitoring, capable of 20 hours continuous operation with built-in, rechargeable battery. The PUB comes with a rugged carrying case with molded foam inserts while the PUF boasts an IP67 rated case to hold and protect all equipment conveniently. Their screens offer easy to read text with convenient backlight for visual comfort. The efficient layout of the function keys adds to these units easy to use programming. These series offer analog as well as a pulsed outputs.

Product Specifications

Name	Value
Category	Flow Meters
Configuration	Standard Version
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Features and benefits	Power Requirements: 9 to 24 VDC, (1) 5-Cell NiMH Battery, Internal, Factory Replaceable (Continuous Operation Time: 20 Hours with Back-Light and Output off) (Recharging Time: 6.5 Hours, Power Adapter Used) \| Accuracy: +/- 0.5 to 2% of Flow Reading for Flow Rate > 0.66 Feet/Second (0.2 Meter/Second) and Pipe ID > 2.95 Inch (75 Millimeter), +/- 3% of Flow Reading for Flow Rate > 0.66 Feet/Second (0.2 Meter/Second) and pipe ID in range 0.512 to 2.95 Inch (13 to 75 Millimeter), +/- 6% of Flow Reading for Flow Rate < 0.66 Feet/Second (0.2 Meter/Second) \| Display: 240 x 64 Pixel Graphic Display, High Contrast Black on White with Backlight, Languages: English, French, German, Swedish, Italian, Spanish, Portuguese, Russian, Norwegian, and Dutch, 5.2 Inch W x 1.5 Inch H \| Range: 0.33 to 65.62 Feet/Second (0.1 to 20 Meter/Second) \| Service: Homogeneous Liquids That Do Not Contain Air Bubbles Capable of Ultrasonic Wave Propagation \| Power Adapter: 110/240 VAC Adapter. UK, US, European Adapters Included \| Inputs: Lemo Connector Cable From Sensors \| Kit Includes: Converter, Set of Transducers, Transducer Holders, Set Transducer Cables (6.56' (2 m)), 4 to 20 mA Communication Cables, 12 VDC Power Supply, Ultrasonic Coupling Grease, Set of Chains, Ruled Guide Rail, Test Block, Carrying Case
P21 delete flag	false
Product category	Flow
Product subcategory	Gas Flow Meters
Range	0.33 to 65.62 Feet/Second (0.1 to 20 Meter/Second)
Restricted class id	NULL
Restricted item	false
Scale	Digital
Series	Dwyer PUB Series
Short desc	Dwyer, Portable Ultrasonic Flowmeter Converter Type B, 2 Inch to 40 Inch (50.7 to 1016mm) Pipe Diameter Range PUB-20
Size	2 to 40 Inch (50.7 to 1016mm) Pipe Size
Supplier part number	PUB-20
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

Power Requirements: 9 to 24 VDC, (1) 5-Cell NiMH Battery, Internal, Factory Replaceable (Continuous Operation Time: 20 Hours with Back-Light and Output off) (Recharging Time: 6.5 Hours, Power Adapter Used) | Accuracy: +/- 0.5 to 2% of Flow Reading for Flow Rate > 0.66 Feet/Second (0.2 Meter/Second) and Pipe ID > 2.95 Inch (75 Millimeter), +/- 3% of Flow Reading for Flow Rate > 0.66 Feet/Second (0.2 Meter/Second) and pipe ID in range 0.512 to 2.95 Inch (13 to 75 Millimeter), +/- 6% of Flow Reading for Flow Rate < 0.66 Feet/Second (0.2 Meter/Second) | Display: 240 x 64 Pixel Graphic Display, High Contrast Black on White with Backlight, Languages: English, French, German, Swedish, Italian, Spanish, Portuguese, Russian, Norwegian, and Dutch, 5.2 Inch W x 1.5 Inch H | Range: 0.33 to 65.62 Feet/Second (0.1 to 20 Meter/Second) | Service: Homogeneous Liquids That Do Not Contain Air Bubbles Capable of Ultrasonic Wave Propagation | Power Adapter: 110/240 VAC Adapter. UK, US, European Adapters Included | Inputs: Lemo Connector Cable From Sensors | Kit Includes: Converter, Set of Transducers, Transducer Holders, Set Transducer Cables (6.56' (2 m)), 4 to 20 mA Communication Cables, 12 VDC Power Supply, Ultrasonic Coupling Grease, Set of Chains, Ruled Guide Rail, Test Block, Carrying Case
