Flow | SKU: OP-F-2

OP-F-2

Name: OP-F-2
Brand: Dwyer
SKU: DWY-OPF2
Price: 973.42 USD
Availability: InStock

Dwyer, Orifice Plate Flowmeter, 2 Inch Line Size, 1.000 Inch Bore, 0.48 Beta, Water Capacity: 100 Inch d.p. W/C, 35.34 GPM Flow, Air Capacity: 100 Inch d.p. W/C, 125.74 SCFM @ 14.7 psia, 202.03 SCFM @ 20 psig, 375.8 SCFM @ 100 psig, 3 lb OP-F-2

$973.42

Shipping calculated at checkout.

Out of stock

Shipping calculated at checkout

Description

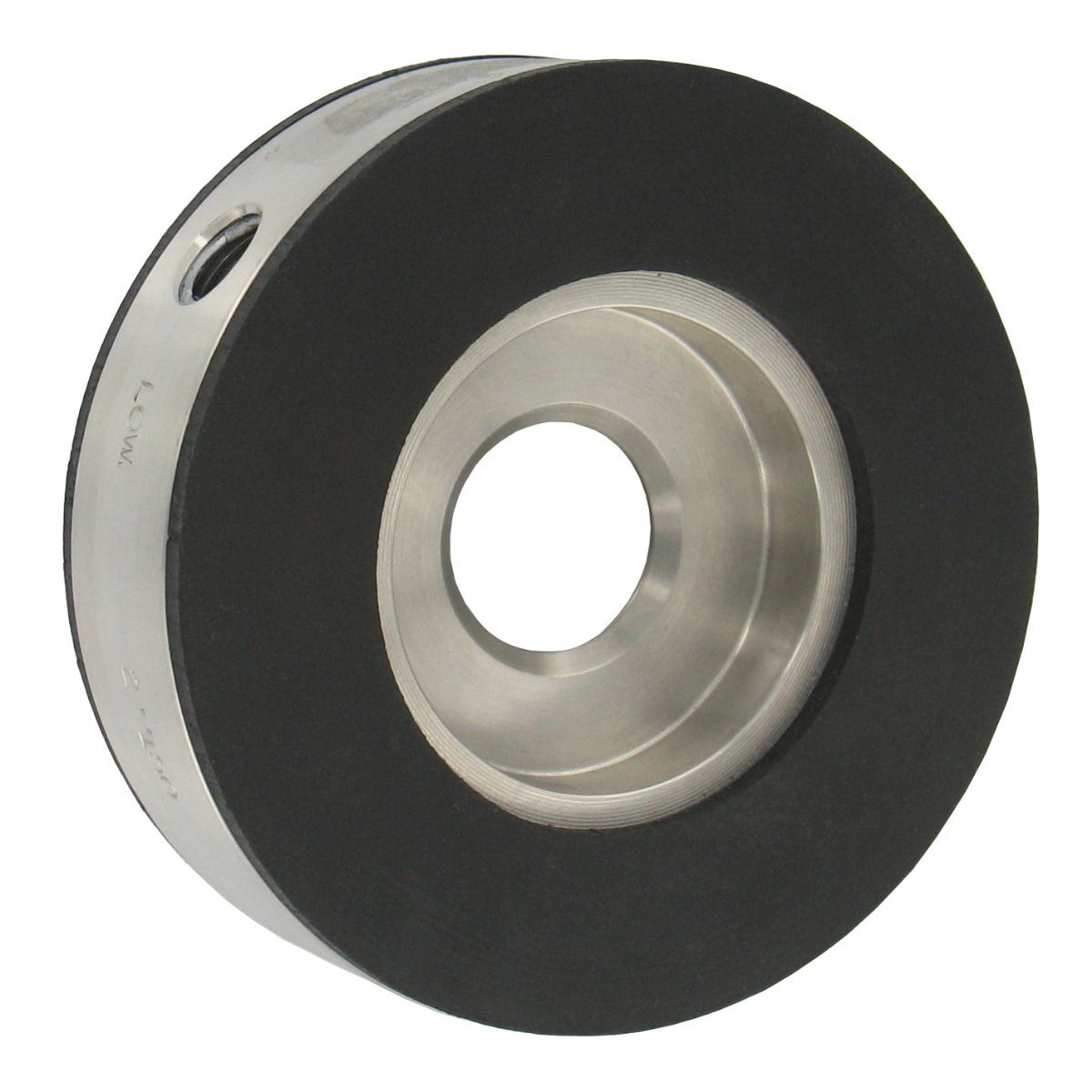

The Series OP Orifice Plate Flowmeter is a complete orifice plate flow metering package. It incorporates a stainless steel orifice plate with a unique holder or carrier ring containing metering taps and integral gaskets. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. Installation is accomplished simply by slipping the unit between standard flanges (orifice flanges are not required). The Series OP is available in line sizes from 1/2 Inch to 24 Inch and can be used with compatible liquids and gases.

Product Specifications

Name	Value
Capacity	100 Inch d.p. W/C, 35.34 GPM Flow \| 100 Inch d.p. W/C, 125.74 SCFM @ 14.7 psia, 202.03 SCFM @ 20 psig, 375.8 SCFM @ 100 psig
Category	Flow Meters
Configuration	2 Inch Line Size, 1.000 Inch Bore, 0.48 Beta
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Features and benefits	Assures Long Term Reliability and Accuracy \| Proven Through a Wide Range of Applications for Accuracy and Energy Efficiency \| Simplified Installation \| Standard "Corner Tap" Configuration \| Corrosion Free Material \| Wetted Material: 304 SS, Buna-N Gaskets \| Built in Metering Taps (1/4 Inch Female NPT STD) \| Mounted with Standard Flanges
Material	304 SS, Buna-N Gaskets
P21 delete flag	false
Product category	Flow
Product subcategory	Gas Flow Meters
Range	Water: 100 Inch d.p. W/C, 35.34 GPM Flow, Air: 100 Inch d.p. W/C, 125.74 SCFM at 14.7 psia
Restricted class id	NULL
Restricted item	false
Series	Dwyer OP PE TE Series
Short desc	Dwyer, Orifice Plate Flowmeter, 2 Inch Line Size, 1.000 Inch Bore, 0.48 Beta, Water Capacity: 100 Inch d.p. W/C, 35.34 GPM Flow, Air Capacity: 100 Inch d.p. W/C, 125.74 SCFM @ 14.7 psia, 202.03 SCFM @ 20 psig, 375.8 SCFM @ 100 psig, 3 lb OP-F-2
Size	1/4 Inch Female NPT
Supplier part number	OP-F-2
Ultra store sync us	Yes
Vendor active	Y
