Dwyer  | SKU: IF2717

IF2717 | Dwyer | Flow

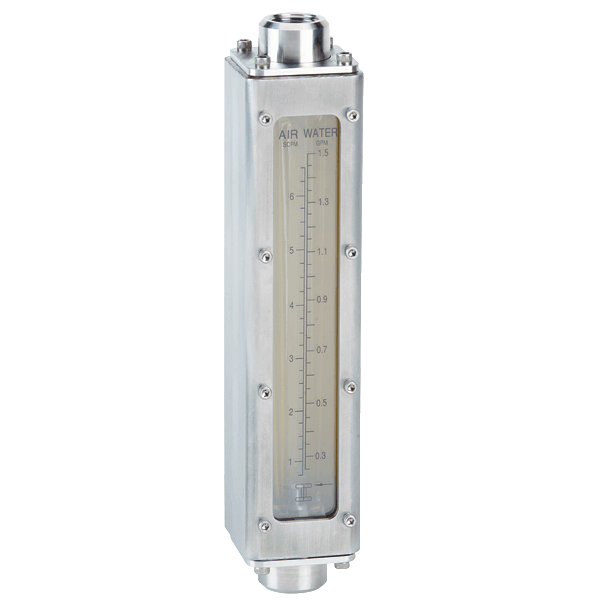

Industrial Direct Reading Flowmeter, Max. Flow Rate 44 GPM (167 Lpm) Water, 180 SCFM (5098 Lpm) Air, Pressure Drop 30 Inch w.c., 2 Inch Female NPT
$4,871.66
Shipping calculated at checkout.

IF2717 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The Series IF Industrial Direct Reading Flowmeters are Flowmeters That Directly Measure Flow Rates Up to 116 GPM (439 LPM) for Water and 250 SCFM (7080 LPM) for Air Service.

Product Specifications

Name Value
Category Flow Meters
Configuration Tube Size - 5 Inch
Data Sheet Download
Float 316 Stainless Steel
Material 316 Stainless Steel Guide Rods, Float Stops, End Fittings
Product category Flow
Product subcategory Gas Flow Meters
Range 13.4 SCFH (6318 ml/min) Air, 2.33 GPH (147 ml/min) Water
Scale Dual GPM, SCFM
Series Dwyer IF Series
Short desc Industrial Direct Reading Flowmeter, Max. Flow Rate 44 GPM (167 Lpm) Water, 180 SCFM (5098 Lpm) Air, Pressure Drop 30 Inch w.c., 2 Inch Female NPT
Size 2 Inch Female NPT
Supplier part number IF2717

Features and Benefits

Accuracy: +/- 3% of FS | Temperature Limit: 200 deg F (93 deg C) | Service: Liquids or Gases | Pressure Limit: 200 psi (13.8 bar), 125 psi for Tube Size 5 and 6 | Detachable, Clear 3/16 Inch Thick Polycarbonate Front Shield Provides Protection at Maximum Rated Temperature and Pressure | Turn-Down Ratio: 10: 1 | Wetted Materials: Flowtube: Borosilicate Glass, Float, Guide Rods, Float Stops, End, Fittings: 316 SS, O-Rings: Fluoroelastomer | Direct Read Scales with No Need for Correlation Charts Saves Time
