Data Center Products | SKU: BTT-O25-1

BTT-O25-1 | Dwyer | Temperature Sensors & Transmitters

Name: BTT-O25-1
Brand: Dwyer
SKU: DWY-BTTO251
Price: 131.25 USD
Availability: InStock

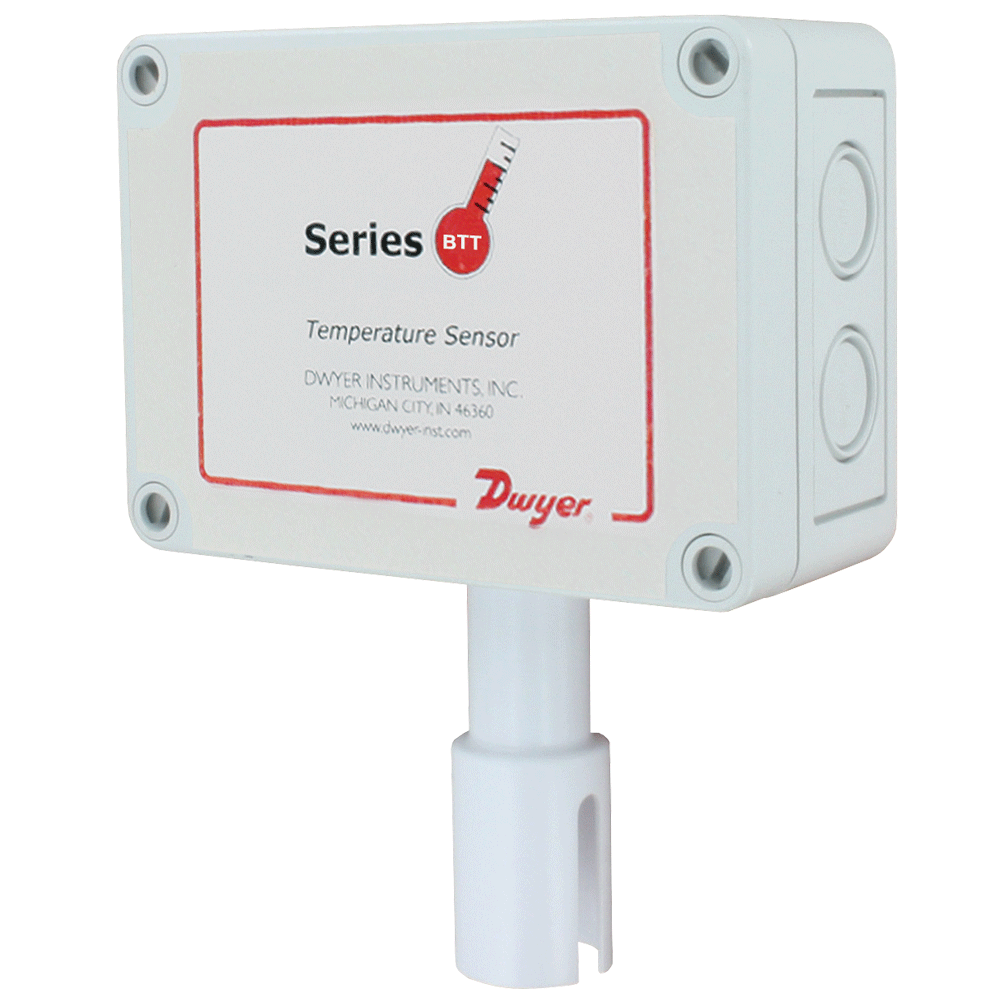

Outside Air Temperature Transmitter with 4 to 20 mA Output

$131.25

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series BTT Temperature Transmitters offer transmitter output signals with the same form and fit as our popular TE thermistor and RTD sensors for building HVAC applications. Thermowells are required when using immersion models in liquid applications. Wall mount models are available on the Series BTT-E/N page.

Product Specifications

Name	Value
Application	Temperature, Transmitters
Category	Dwyer
Data Sheet	Download
Product category	Temperature Sensors & Transmitters
Product subcategory	Outdoor
Series	Dwyer
Short desc	Outside Air Temperature Transmitter with 4 to 20 mA Output
Supplier part number	BTT-O25-1

Features and Benefits

Thermal Effect: ±0.01 Percentage/deg C | Temperature Limits: Operating: -40 to 302 deg F (-40 to 150 deg C) | Range: -40 to 140 deg F (-40 to 60 deg C) | Transmitter Output Allows for Longer Wire Runs Than Standard Thermistor Sensors | Application: Building Automation System Temperature Monitoring | Accuracy: ±0.5 deg C @ 25 deg C | Radiation Shield Available for Mounting in Direct Sunlight | Temperature Sensor: Pt1000 RTD | Response Time: 100 Milliseconds
