Dry Differential Pressure Transmitters | SKU: 673-13

673-13 | Dwyer | Pressure

Name: 673-13
Brand: Dwyer
SKU: DWY-67313
Price: 795.77 USD
Availability: InStock

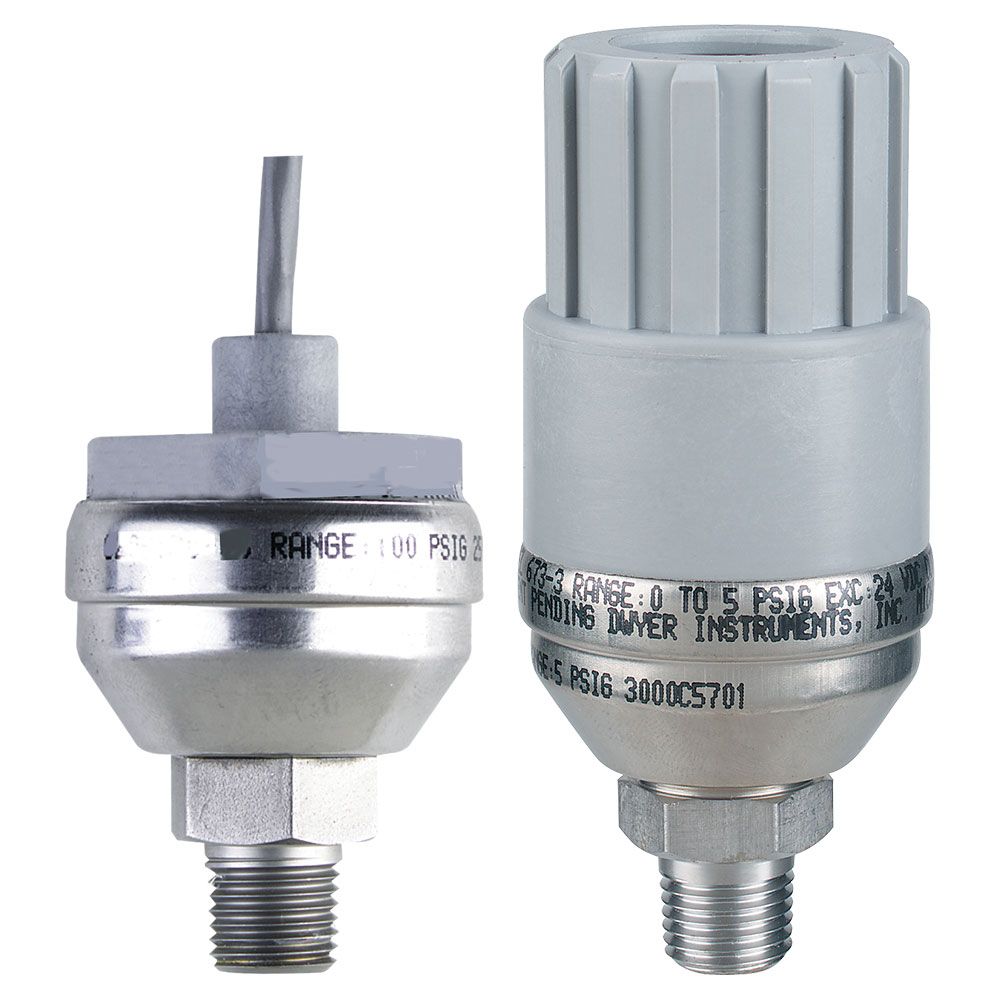

Pressure Transmitter, Range -14.7 to 30 psig

$795.77

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25 Percentage accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Product Specifications

Name	Value
Application	Home, Products, Pressure, Single Pressure, Transmitter
Category	Dwyer
Inv mast uid	314818
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Short desc	Pressure Transmitter, Range -14.7 to 30 psig
Supplier part number	673-13

Features and Benefits

Pressure Limits: 2X Max Range | Compensated Temperature Range: -40 to 176 deg F (-40 to 80 deg C) | Temperature Limits: -40 to 185 deg F (-40 to 85 deg C) | Thermal Effects: Zero Shift: ±2.0 Percentage FS/100 deg F (±1.8 Percentage FS/50 deg C); Span Shift: ±1.5 Percentage FS/100 deg F (±1.3 Percentage FS/50 deg C); Warm-Up Shift: ±0.1 Percentage FS Total | Stability: 0.5 Percentage FS/Year | Wetted Materials: 17-4 PH Stainless Steel | Service: Non-Combustible Liquid, Gas, or Vapor | Accuracy: RSS (at Constant Temperature) ±0.25 Percentage. Non-Linearity (BSFL) ±0.22 Percentage FS; Hysteresis 0.10 Percentage FS; Non-Repeatability 0.05 Percentage FS | Application: OEM, Hydraulic Systems, HVAC Equipment, Industrial Engines, Compressors
