Control Valves & Actuators | SKU: 645-15

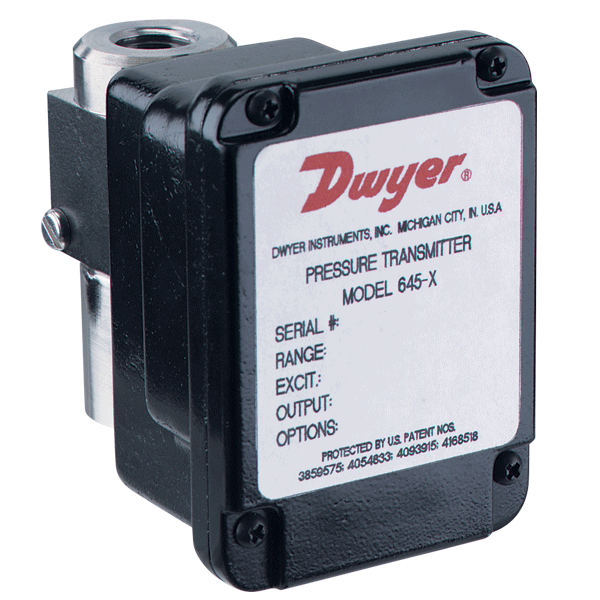

645-15 | Dwyer | 645-15 +/-25 PSID W/W XMTR

Name: 645-15 | Dwyer | 645-15 +/-25 PSID W/W XMTR
Brand: Dwyer
SKU: DWY-64515
Price: 1467.79 USD
Availability: InStock

Dwyer, Wet/Wet Differential Pressure Transmitter, Range +/-25 psid 645-15

$1,467.79

Shipping calculated at checkout.

Out of stock

Usually ships next day

Calculated at checkout

Description

Series 645 Wet/Wet Differential Pressure Transmitters are designed for use with compatible gases and liquids which can be applied to both the pressure and reference ports. Quick response capacitance sensor delivers a 4 to 20 mA output signal proportional to differential pressure with ±.25 Percentage accuracy. The Series 645 transmitters are ideal for process control, filter condition monitoring, refrigeration equipment, pump speed control, HVAC equipment, and liquid level measurement. For ease of installation and maintenance, order optional 3-valve manifold assembly. Bleed ports allow for total elimination of air in the line and pressure cavities.

Product Specifications

Name	Value
Accuracy	+/-0.25% F.S.
Category	Pressure
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Display type	No Display
Features and benefits	Pressure Limits: (High Side) 1 to 5 psi: 20 x FS, 10 to 25 psi: 10 x FS, 50 psi: 5 x FS, 100 psi: 2.5 x FS; (Low Side) 2.5 x FS \| Temperature Limits: Operating: 0 to 175 deg F (-22 to 80 deg C); Storage: -65 to 260 deg F (-54 to 126 deg C) \| Wetted Materials: 17-4 PH Stainless Steel, 300 Series Stainless Steel, Fluoroelastomer and Silicone O-Rings and Bleed Screw Seals \| Thermal Effects: (Includes Zero and Span) ±0.02 Percentage FS/deg F, 30 to 150 deg F (-1 to 65 deg C) \| Service: Compatible Gases or Liquids on Both Pressure and Reference Sides \| Application: Process Control, Filter Monitoring, Refrigeration Equipment, Pump Speed Control, HVAC Equipment, Liquid Level Measurement \| Accuracy: ±0.25 Percentage FS (RSS) \| Response Time: 30 to 50 Milliseconds \| Optional 3-Way Valve Manifold Supports Simplifying Installation or Removal of Transmitter without Interrupting Process \| Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
Mount type	Process Connection
Output	4 to 20 mA, 2-Wire
P21 delete flag	false
Product category	Control Valves & Actuators
Range	25 psid
Restricted class id	NULL
Restricted item	false
Series	Dwyer
Short desc	Dwyer, Wet/Wet Differential Pressure Transmitter, Range +/-25 psid 645-15
Supplier part number	645-15
Ultra store sync us	Yes
Vendor active	Y

Features and Benefits

Pressure Limits: (High Side) 1 to 5 psi: 20 x FS, 10 to 25 psi: 10 x FS, 50 psi: 5 x FS, 100 psi: 2.5 x FS; (Low Side) 2.5 x FS | Temperature Limits: Operating: 0 to 175 deg F (-22 to 80 deg C); Storage: -65 to 260 deg F (-54 to 126 deg C) | Wetted Materials: 17-4 PH Stainless Steel, 300 Series Stainless Steel, Fluoroelastomer and Silicone O-Rings and Bleed Screw Seals | Thermal Effects: (Includes Zero and Span) ±0.02 Percentage FS/deg F, 30 to 150 deg F (-1 to 65 deg C) | Service: Compatible Gases or Liquids on Both Pressure and Reference Sides | Application: Process Control, Filter Monitoring, Refrigeration Equipment, Pump Speed Control, HVAC Equipment, Liquid Level Measurement | Accuracy: ±0.25 Percentage FS (RSS) | Response Time: 30 to 50 Milliseconds | Optional 3-Way Valve Manifold Supports Simplifying Installation or Removal of Transmitter without Interrupting Process | Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
