Dry Differential Pressure Transmitters | SKU: 636-1

636-1 | Dwyer | Pressure

Name: 636-1
Brand: Dwyer
SKU: DWY-6361
Price: 1461.96 USD
Availability: InStock

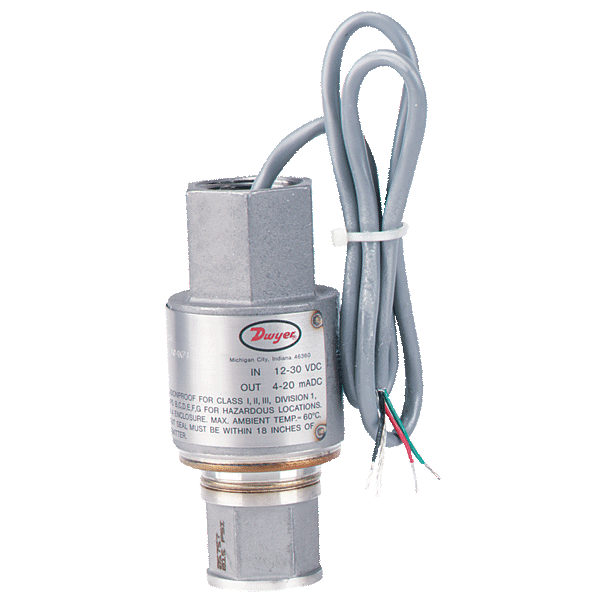

Fixed Range Pressure Transmitter, Range 0-30 psi (0-2 bar)

$1,461.96

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series 636 Fixed Range Pressure Transmitter is a low cost, fixed range, stainless steel transmitter with ±0.30 Percentage accuracy. It is designed to continuously measure pressure for years in even the toughest environmental and media conditions. Transmitters are explosion-proof, (FM approved) and meet NACE standards for off-shore applications.

Product Specifications

Name	Value
Application	Home, Products, Pressure, Single Pressure, Transmitter
Category	Dwyer
Data Sheet	Download
Inv mast uid	314605
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Short desc	Fixed Range Pressure Transmitter, Range 0-30 psi (0-2 bar)
Supplier part number	636-1

Features and Benefits

Stability: ±0.5 Percentage of Upper Range Limit for Six Months | Accuracy: ±0.30 Percentage of Calibrated Span Including Linearity Hysteresis and Repeatability (BFSL) at 25 deg C (77 deg F) and 12 VDC Excitation | Fill Fluid: DC 200 Silicone (Standard) | Service: Liquid, Gas or Vapor | Pressure Limits: 300 Percentage Upper Range Limit | Explosion-Proof Housing for Use in Applications Where Protection of Process and Personnel is Needed | Temperature Limits: Electronics (Ambient): -40 to 140 deg F (-40 to 60 deg C); Process Interface: -40 to 212 deg F (-40 to 100 deg C) | Wetted Materials: 316L Stainless Steel | Application: Off-Shore, Process Applications
