Dry Differential Pressure Transmitters | SKU: 629HLP-15-P2-S5

629HLP-15-P2-S5 | Dwyer | Pressure

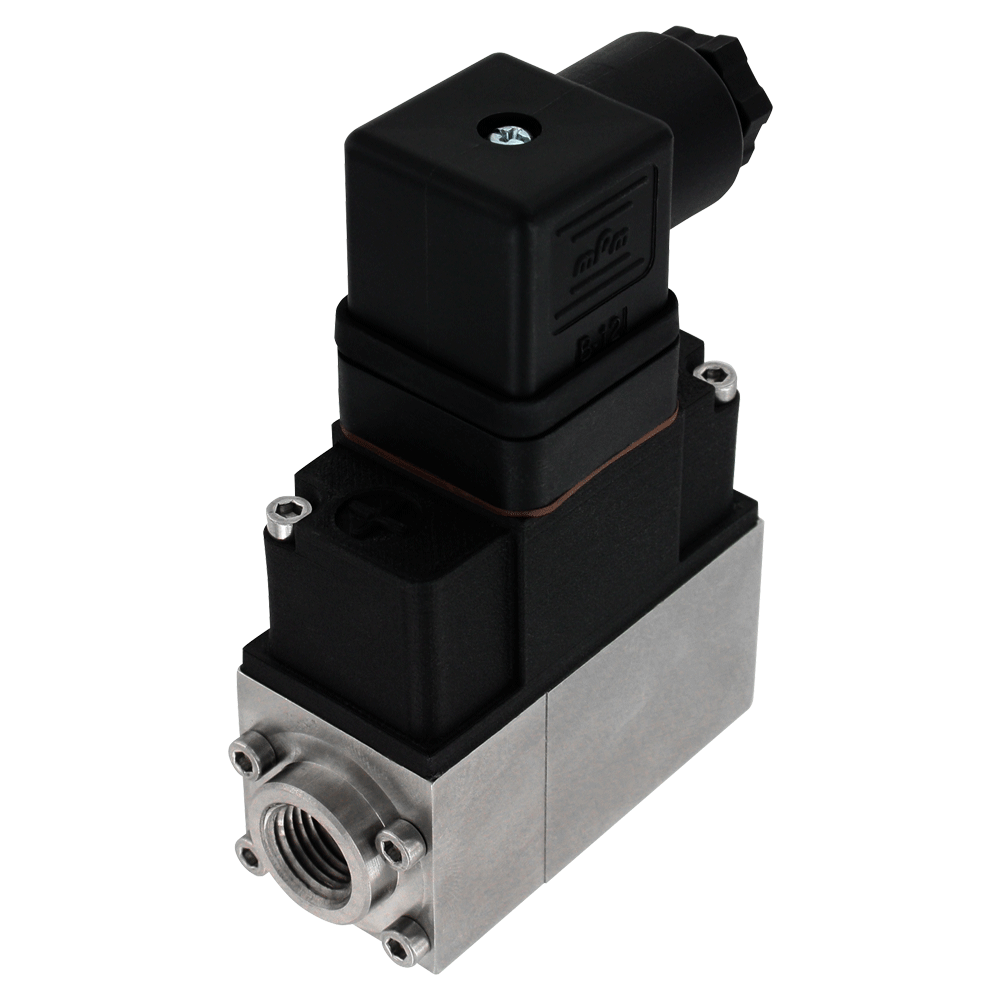

Name: 629HLP-15-P2-S5
Brand: Dwyer
SKU: DWY-629HLP15P2S5
Price: 499.01 USD
Availability: InStock

Differential Pressure Transmitter, 0-15 psi, 1/4 Inch Female NPT, 0-10V

$499.01

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series 629HLP Differential Pressure Transmitters are suitable for measuring over-pressure, under-pressure, and differential pressure in compatible gases and liquids with 1 Percentage accuracy. The 629HLP is suitable for all measuring tasks in commercial, industrial or sanitary applications. Its single sensor design allows it to measure small increment pressure changes, and converts them to a linear analog output signal from 4 to 20 mA or 0 to 10 VDC.

Product Specifications

Name	Value
Accuracy	+/-1% F.S.
Category	Pressure
Configuration	1/4 in Female NPT Process Connection
Data Sheet	Download
Installation Guide	Download
Display type	No Display
Inv mast uid	314597
Mount type	Process Connection
Output	0-10 VDC
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Range	0-15 psi
Series	Dwyer
Short desc	Differential Pressure Transmitter, 0-15 psi, 1/4 Inch Female NPT, 0-10V
Supplier part number	629HLP-15-P2-S5
Type	Differential Pressure Transmitter
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Service: Compatible Gases or Liquids', 'Features_and_Benefits_2': 'Application: Heat Exchangers, Fan Coils/Air Handlers, Core Testing Applications, Hydraulic Systems, High Line Pressures/Low DP, Pumps, Commercial/Industrial Processes, Sanitary Process', 'Features_and_Benefits_3': 'Compact, Lightweight, Capable to Be Installed in Any Arrangement Making Installation Very Simple', 'Features_and_Benefits_4': 'Converts Pressure Changes Into 4 to 20 mA or 0 to 10 VDC Output', 'Features_and_Benefits_5': 'For Liquid or Gas Systems Requiring Precise Measurements', 'Features_and_Benefits_6': 'Provide Excellent Response and Reliability', 'Features_and_Benefits_7': 'Accuracy: ±1 Percentage From -5 to 60 deg C (23 to 140 deg F)', 'Features_and_Benefits_8': 'Suitable for Static and Dynamic Measurements', 'Features_and_Benefits_9': 'Capable to Handle Up to 360 psi (25 BAR)', 'Features_and_Benefits_10': 'Rugged, versatile, high accuracy device'}
