Control Valves & Actuators | SKU: 628-11-CB-P1-E5-S1

628-11-CB-P1-E5-S1 | Dwyer | Control Valves & Actuators

Name: 628-11-CB-P1-E5-S1
Brand: Dwyer
SKU: DWY-62811CBP1E5S1
Price: 216.10 USD
Availability: InStock

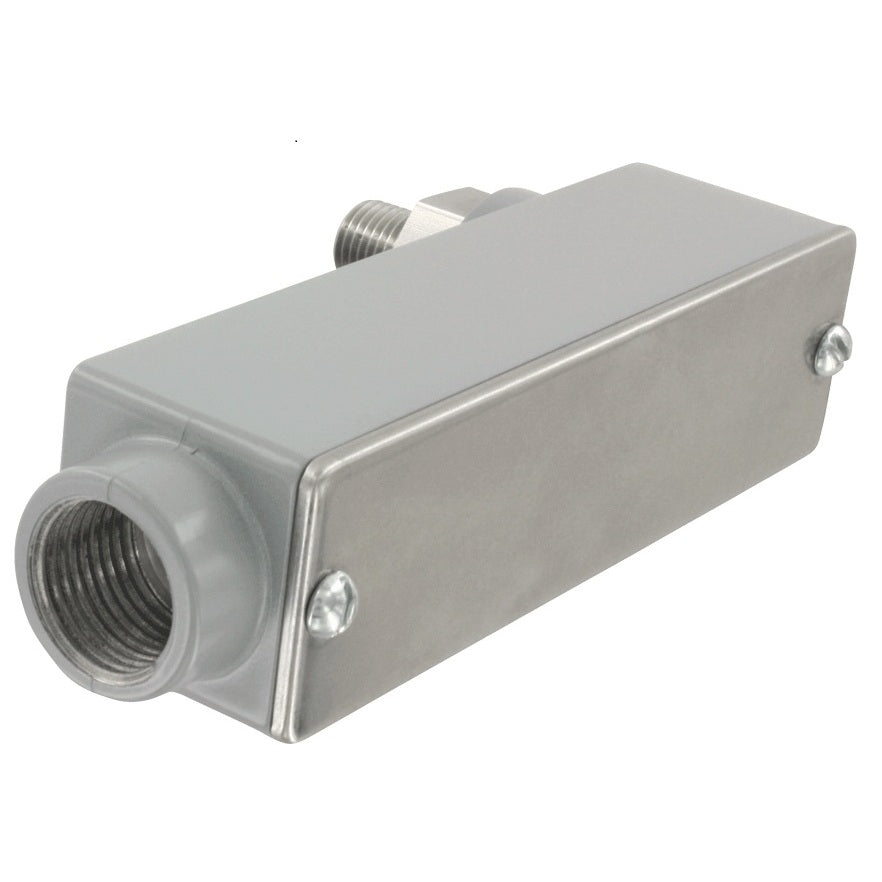

628, Industrial Pressure Transmitter, Range: 0 to 150 psig, Output: 4-20 mA, +/-1% F.S. Accuracy, Conduit Box Housing (1/2 Inch Female NPT)

$216.10

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.

Product Specifications

Name	Value
Accuracy	+/-1% F.S.
Category	Pressure
Configuration	Conduit Box Housing (1/2 Inch Female NPT)
Data Sheet	Download
Installation Guide	Download
Display type	No Display
Inv mast uid	104117
Mount type	Process Connection
Output	4 to 20 mA
Product category	Control Valves & Actuators
Range	0 to 150 psig
Series	Dwyer
Short desc	628, Industrial Pressure Transmitter, Range: 0 to 150 psig, Output: 4-20 mA, +/-1% F.S. Accuracy, Conduit Box Housing (1/2 Inch Female NPT)
Supplier part number	628-11-CB-P1-E5-S1

Features and Benefits

Temperature Limit: 0 to 200 deg F (-18 to 93 deg C) | Accuracy: 628: 1.0 Percentage FS; 628: 0.5 Percentage RSS (Includes Linearity, Hysteresis, and Repeatability.) | Compensated Temperature Range: 0 to 175 deg F (-18 to 79 deg C) | Wetted Materials: Type 316L SS | Service: Compatible Gases and Liquids | A wide Range of Models and Connections That Can Meet Pressure Measurement Specifications From Low to Very High | Application: Compressors, Pumping Systems, Irrigation System Pressure, Industrial Process Monitoring, Hydraulic | NEMA 4X Rated Enclosure Provides Protection in Harsh Environments Permitting Outdoor Monitoring or in Areas Where Dust and Particulate Matter Exists | Thermal Effect: ±0.02 Percentage FS/deg F. (Includes Zero and Span) | Robust 316L SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
