Control Valves & Actuators  | SKU: 628-00-GH-P9-E1-S1

628-00-GH-P9-E1-S1 | Dwyer | Control Valves & Actuators

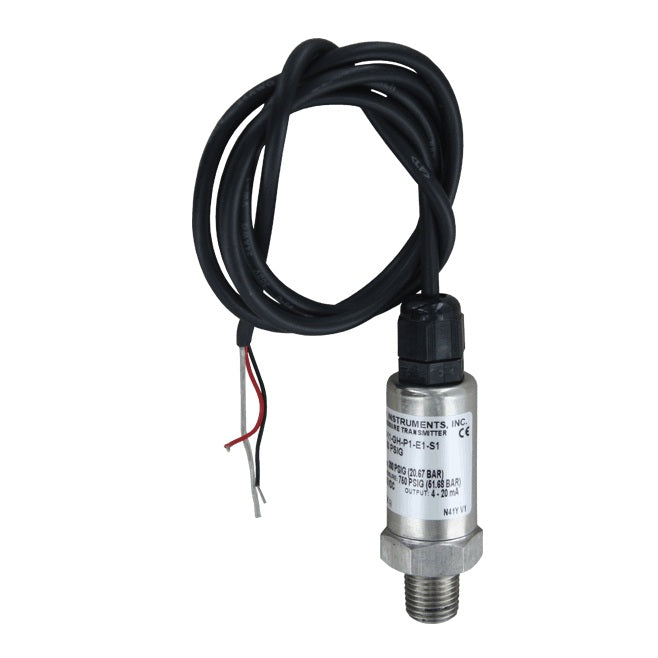

628, Industrial Pressure Transmitter, Range: 0 to 15 psia, Output: 4-20 mA, +/-1% F.S. Accuracy, Cable Gland with 3 Ft of Cable, Process Connection: 1/2 Inch Male NPT Depessor
$216.40
Shipping calculated at checkout.

628-00-GH-P9-E1-S1 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.

Product Specifications

Name Value
Accuracy +/-1% F.S.
Category Pressure
Configuration Cable Gland with 3 Ft of Cable, Process Connection: 1/2 Inch Male NPT Depessor
Data Sheet Download
Installation Guide Download
Display type No Display
Mount type Process Connection
Output 4 to 20 mA
Product category Control Valves & Actuators
Range 0 to 15 psia
Series Dwyer
Short desc 628, Industrial Pressure Transmitter, Range: 0 to 15 psia, Output: 4-20 mA, +/-1% F.S. Accuracy, Cable Gland with 3 Ft of Cable, Process Connection: 1/2 Inch Male NPT Depessor
Supplier part number 628-00-GH-P9-E1-S1

Features and Benefits

Wetted Materials: Type 316L SS | Service: Compatible Gases and Liquids | Application: Compressors, Pumping Systems, Irrigation System Pressure, Industrial Process Monitoring, Hydraulic | A wide Range of Models and Connections That Can Meet Pressure Measurement Specifications From Low to Very High | NEMA 4X Rated Enclosure Provides Protection in Harsh Environments Permitting Outdoor Monitoring or in Areas Where Dust and Particulate Matter Exists | Robust 316L SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
