Dry Differential Pressure Transmitters | SKU: 616D-6

616D-6 | Dwyer | Pressure

Name: 616D-6
Brand: Dwyer
SKU: DWY-616D6
Price: 261.51 USD
Availability: InStock

Differential Pressure Transmitter, Range 0-100 Inch w.c., Max. Pressure 15 psig

$261.51

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

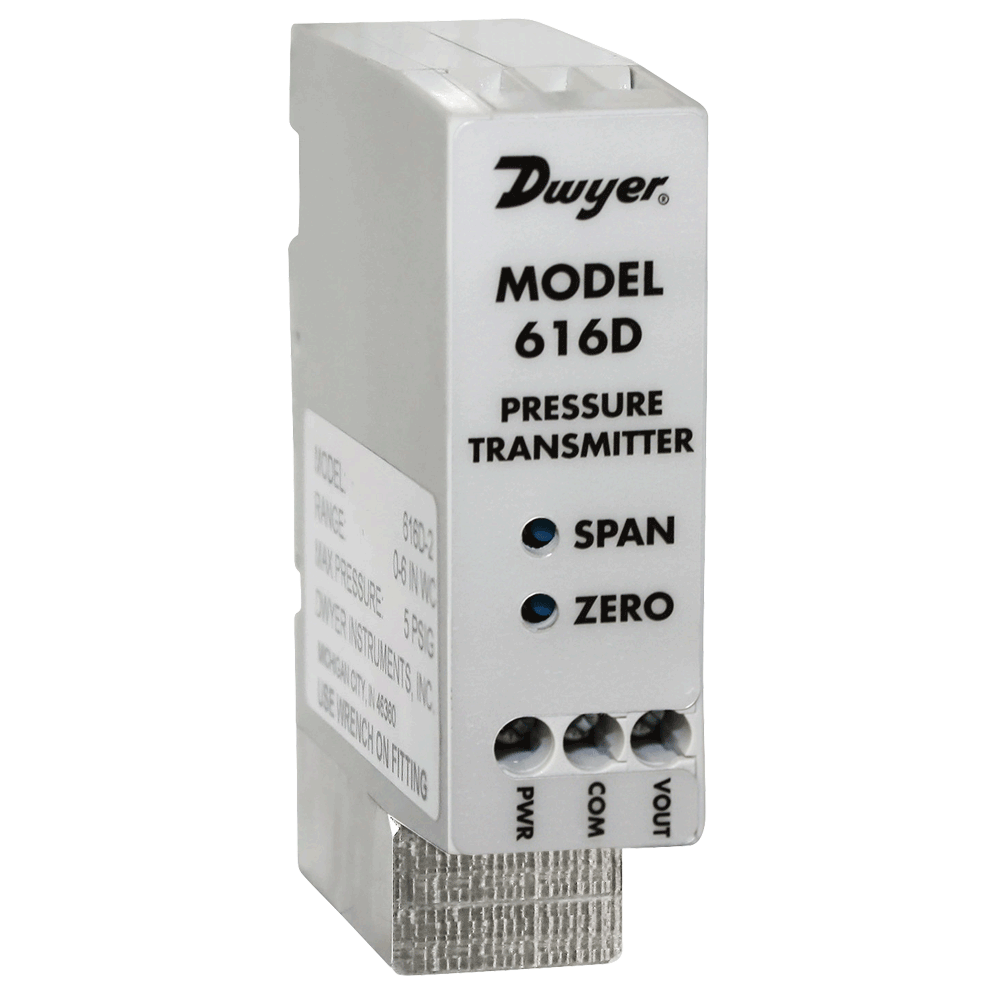

The Series 616D Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA or 0 to 10 VDC output signal. The 616D enclosure is specifically designed to mount on a 35 Millimeter DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. The span and zero controls are for use when checking calibration. They are not intended for re-ranging. Versatile circuit design enables operation in 2-wire current loops.

Product Specifications

Name	Value
Accuracy	+/-0.25% F.S.
Category	Pressure
Data Sheet	Download
Installation Guide	Download
Display type	No Display
Inv mast uid	314357
Mount type	DIN Rail Mount
Output	4 to 20 mA (2-Wire), 0-10 VDC (3-Wire)
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Range	0-100 in w.c
Series	Dwyer
Short desc	Differential Pressure Transmitter, Range 0-100 Inch w.c., Max. Pressure 15 psig
Supplier part number	616D-6
Type	DIN Rail Differential Pressure Transmitter
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Temperature Limits: 14 to 185 deg F (-10 to 85 deg C)', 'Features_and_Benefits_2': 'Stability: ±1 Percentage FS/Year', 'Features_and_Benefits_3': 'Accuracy: ±0.25 FS @ 77 deg F (25 deg C)', 'Features_and_Benefits_4': 'Wetted Materials: Consult Factory', 'Features_and_Benefits_5': 'Service: Air and Non-Combustible, Compatible Gases', 'Features_and_Benefits_6': 'Thermal Effect: ±0.02 Percentage FS/deg F (0.036 Percentage FS/deg C)', 'Features_and_Benefits_7': 'Application: Air Handlers, Duct Pressure, Variable Air Volume, Filter Monitoring', 'Features_and_Benefits_8': 'Cost Effective and Compact Device Suitable for OEM Applications Where Space, Simplicity, and Value are Key', 'Features_and_Benefits_9': 'Loop Resistance: Current Output: 0 to 1250 Ohm Max; Voltage Output: Load Resistance 1 k Ohm Min', 'Features_and_Benefits_10': 'Simple calibration push-buttons to set zero and span'}
