Data Center Products  | SKU: 616D-4

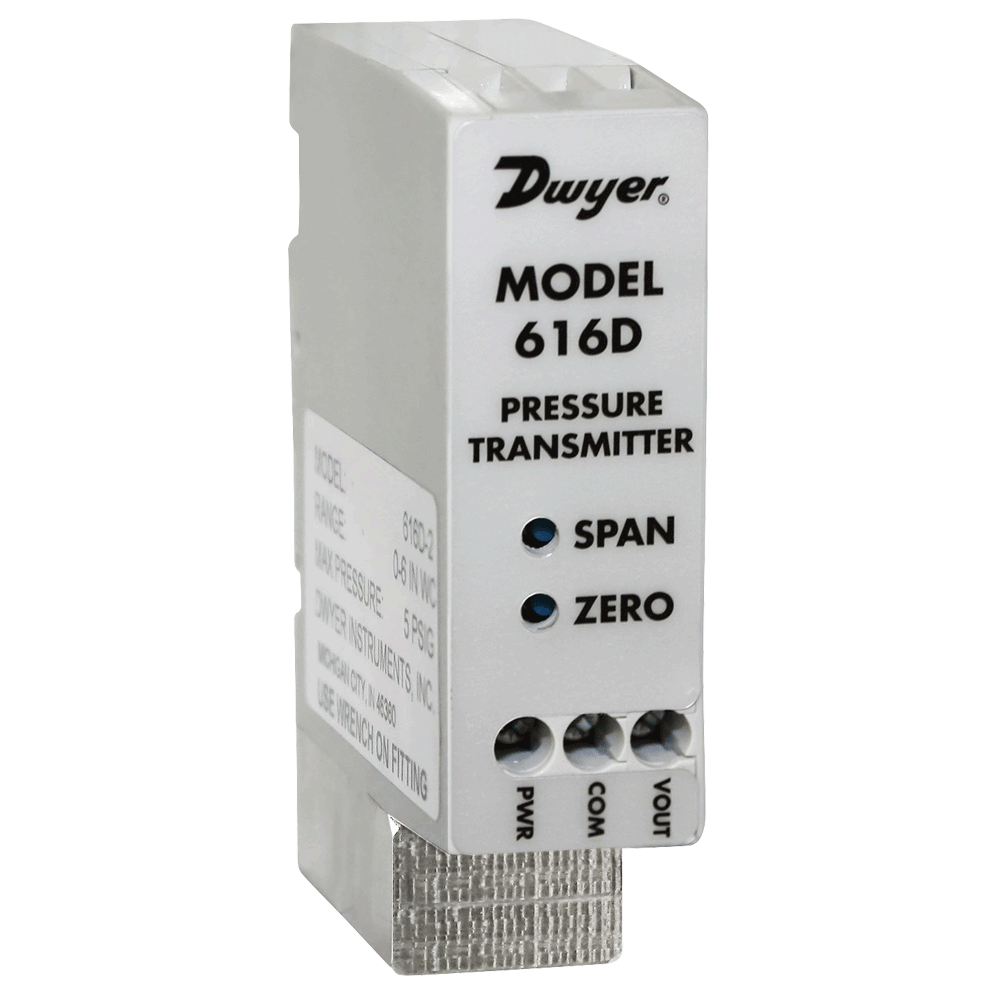

616D-4 | Dwyer | Pressure

Differential Pressure Transmitter, Range 0-20 Inch w.c., Max. Pressure 20 psig
$261.51
Shipping calculated at checkout.

616D-4 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The Series 616D Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA or 0 to 10 VDC output signal. The 616D enclosure is specifically designed to mount on a 35 Millimeter DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. The span and zero controls are for use when checking calibration. They are not intended for re-ranging. Versatile circuit design enables operation in 2-wire current loops.

Product Specifications

Name Value
Accuracy +/-0.25% F.S.
Category Pressure
Data Sheet Download
Installation Guide Download
Display type No Display
Inv mast uid 314355
Mount type DIN Rail Mount
Output 4 to 20 mA (2-Wire), 0-10 VDC (3-Wire)
Product category Pressure
Product subcategory Dry Differential Pressure Transmitters
Range 0-20 Inch w.c
Series Dwyer
Short desc Differential Pressure Transmitter, Range 0-20 Inch w.c., Max. Pressure 20 psig
Supplier part number 616D-4

Features and Benefits

Temperature Limits: 14 to 185 deg F (-10 to 85 deg C) | Stability: ±1 Percentage FS/Year | Accuracy: ±0.25 FS @ 77 deg F (25 deg C) | Wetted Materials: Consult Factory | Service: Air and Non-Combustible, Compatible Gases | Thermal Effect: ±0.02 Percentage FS/deg F (0.036 Percentage FS/deg C) | Application: Air Handlers, Duct Pressure, Variable Air Volume, Filter Monitoring | Cost Effective and Compact Device Suitable for OEM Applications Where Space, Simplicity, and Value are Key | Loop Resistance: Current Output: 0 to 1250 Ohm Max; Voltage Output: Load Resistance 1 k Ohm Min | Simple calibration push-buttons to set zero and span
