Data Center Products | SKU: 616D-3

616D-3 | Dwyer | Pressure

Name: 616D-3
Brand: Dwyer
SKU: 616D-3
Price: 326.87 USD
Availability: InStock

Dwyer, Differential Pressure Transmitter, Range 0-10 Inch w.c., Max. Pressure 10 psig 616D-3

$326.87

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

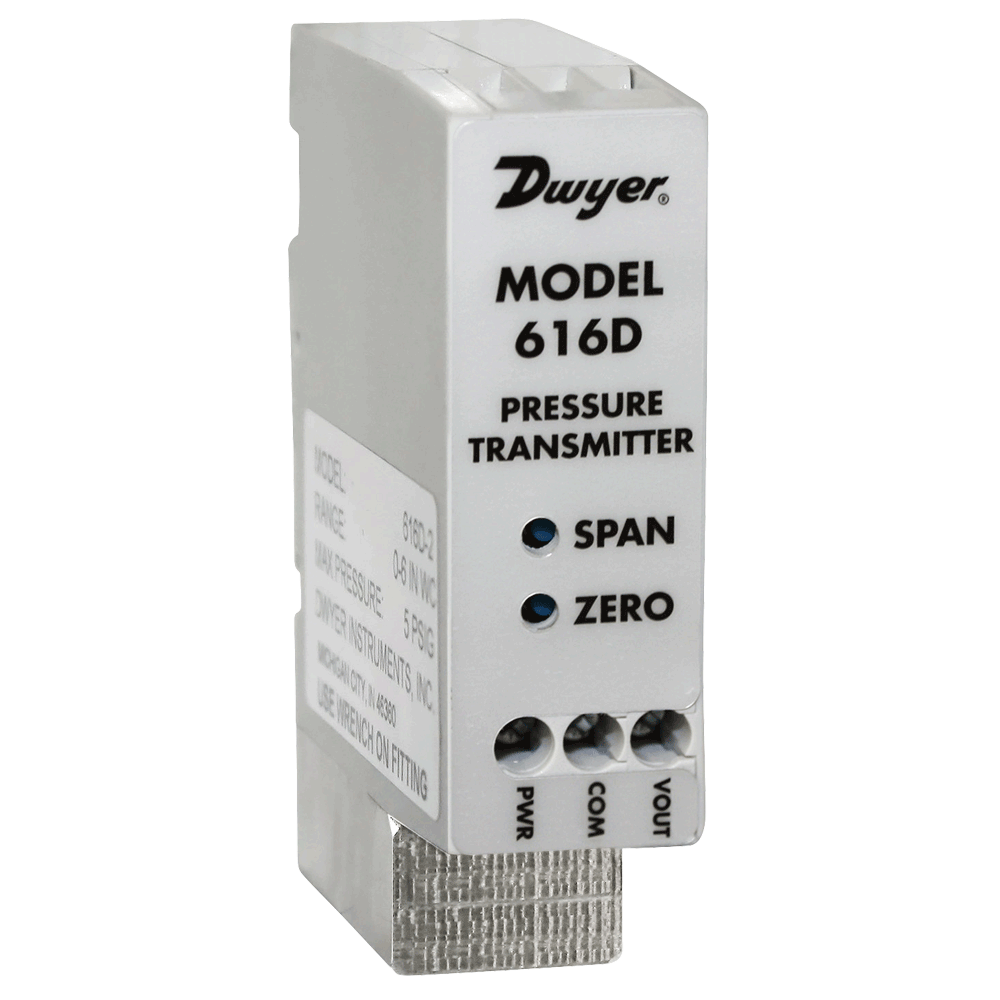

The Series 616D Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA or 0 to 10 VDC output signal. The 616D enclosure is specifically designed to mount on a 35 Millimeter DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. The span and zero controls are for use when checking calibration. They are not intended for re-ranging. Versatile circuit design enables operation in 2-wire current loops.

Product Specifications

Name	Value
Accuracy	+/-0.25% F.S.
Category	Pressure
Data Sheet	Download
Installation Guide	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Display type	No Display
Features and benefits	Temperature Limits: 14 to 185 deg F (-10 to 85 deg C) \| Stability: ±1 Percentage FS/Year \| Accuracy: ±0.25 FS @ 77 deg F (25 deg C) \| Wetted Materials: Consult Factory \| Service: Air and Non-Combustible, Compatible Gases \| Thermal Effect: ±0.02 Percentage FS/deg F (0.036 Percentage FS/deg C) \| Application: Air Handlers, Duct Pressure, Variable Air Volume, Filter Monitoring \| Cost Effective and Compact Device Suitable for OEM Applications Where Space, Simplicity, and Value are Key \| Loop Resistance: Current Output: 0 to 1250 Ohm Max; Voltage Output: Load Resistance 1 k Ohm Min \| Simple calibration push-buttons to set zero and span
Mount type	DIN Rail Mount
Output	4 to 20 mA (2-Wire), 0-10 VDC (3-Wire)
P21 delete flag	false
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Range	0-10 Inch w.c
Restricted class id	NULL
Restricted item	false
Series	Dwyer
Short desc	Dwyer, Differential Pressure Transmitter, Range 0-10 Inch w.c., Max. Pressure 10 psig 616D-3
Supplier part number	616D-3
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

Temperature Limits: 14 to 185 deg F (-10 to 85 deg C) | Stability: ±1 Percentage FS/Year | Accuracy: ±0.25 FS @ 77 deg F (25 deg C) | Wetted Materials: Consult Factory | Service: Air and Non-Combustible, Compatible Gases | Thermal Effect: ±0.02 Percentage FS/deg F (0.036 Percentage FS/deg C) | Application: Air Handlers, Duct Pressure, Variable Air Volume, Filter Monitoring | Cost Effective and Compact Device Suitable for OEM Applications Where Space, Simplicity, and Value are Key | Loop Resistance: Current Output: 0 to 1250 Ohm Max; Voltage Output: Load Resistance 1 k Ohm Min | Simple calibration push-buttons to set zero and span
