Dwyer  | SKU: 3100D-1-FM-1-1

3100D-1-FM-1-1 | Dwyer | Pressure

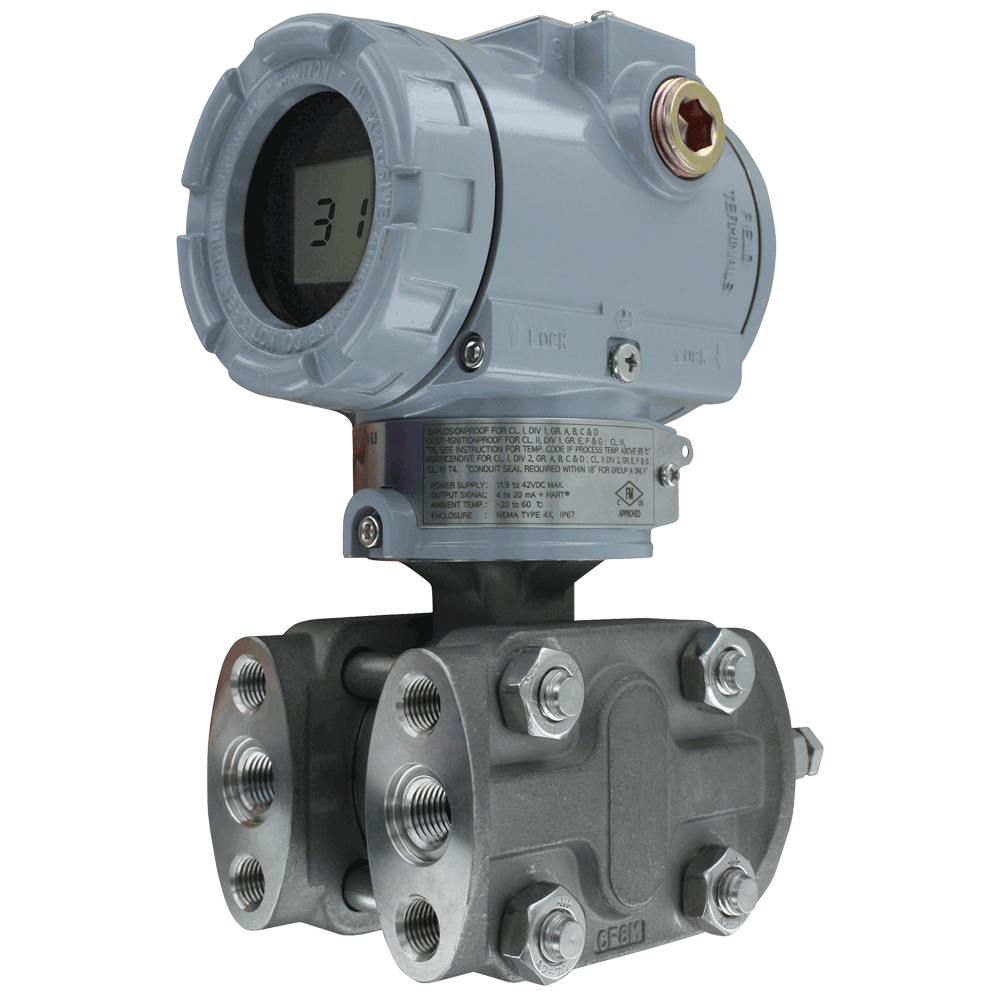

Dwyer, Explosion-Proof Smart Differential Pressure Transmitter, Range 0-6 Inch w.c 3100D-1-FM-1-1
$3,303.70
Shipping calculated at checkout.

3100D-1-FM-1-1 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Mercoid Series 3100D Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART Communication. The Series 3100D is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3100D is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.

Product Specifications

Name Value
Accuracy +/- 0.075% FS
Category Pressure
Data Sheet Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Display type No Display
Features and benefits Wetted Materials: 316L SS, Fluoroelastomer | Service: Compatible Gases, Steam, Liquids or Vapors | Application: Flow Measurement, Level Monitoring, Filter or Pump Differential Pressure, Critical Process Monitoring | A HART Communication Programmable Device Provides a Reliable, Long-Term Solution for Plant Operators Who Seek the Benefits of Intelligent Devices with Digital Communication | Fail-Mode Process Function Stores Configuration Settings in the Event of Shutdown or Power-Loss Provides for Faster Restart To Getting Application Back On-Line | Automatic Sensor Temperature Compensation Improves Performance of Device for Accurate Measurement Under Different Operating Environments | High Accuracy (+/-0.075%) Provides Exceptional Measurement for Ensuring Tight Control and Minimizing Costly Out of Specification Conditions | Temperature Limits: Process: -40 to 248 deg F (-40 to 120 deg C); Ambient (without LCD): -40 to 185 deg F (-40 to 85 deg C) | Range-Ability and Selectable Engineering Units, Allows Transmitter To Fit Many Applications Reducing the Number of Different Transmitters To Meet Specifications
Output 4 to 20 mA, HART Communication
P21 delete flag false
Product category Pressure
Product subcategory Dry Differential Pressure Transmitters
Range 0-6 Inch w.c
Restricted class id NULL
Restricted item false
Series Dwyer
Short desc Dwyer, Explosion-Proof Smart Differential Pressure Transmitter, Range 0-6 Inch w.c 3100D-1-FM-1-1
Supplier part number 3100D-1-FM-1-1
Ultra store sync us Yes
Vendor active Y
Vendor enabled true

Features and Benefits

Wetted Materials: 316L SS, Fluoroelastomer | Service: Compatible Gases, Steam, Liquids or Vapors | Application: Flow Measurement, Level Monitoring, Filter or Pump Differential Pressure, Critical Process Monitoring | A HART Communication Programmable Device Provides a Reliable, Long-Term Solution for Plant Operators Who Seek the Benefits of Intelligent Devices with Digital Communication | Fail-Mode Process Function Stores Configuration Settings in the Event of Shutdown or Power-Loss Provides for Faster Restart To Getting Application Back On-Line | Automatic Sensor Temperature Compensation Improves Performance of Device for Accurate Measurement Under Different Operating Environments | High Accuracy (+/-0.075%) Provides Exceptional Measurement for Ensuring Tight Control and Minimizing Costly Out of Specification Conditions | Temperature Limits: Process: -40 to 248 deg F (-40 to 120 deg C); Ambient (without LCD): -40 to 185 deg F (-40 to 85 deg C) | Range-Ability and Selectable Engineering Units, Allows Transmitter To Fit Many Applications Reducing the Number of Different Transmitters To Meet Specifications
