Belimo | SKU: LRX24-MFT

LRX24-MFT | Belimo | Control Valves & Actuators

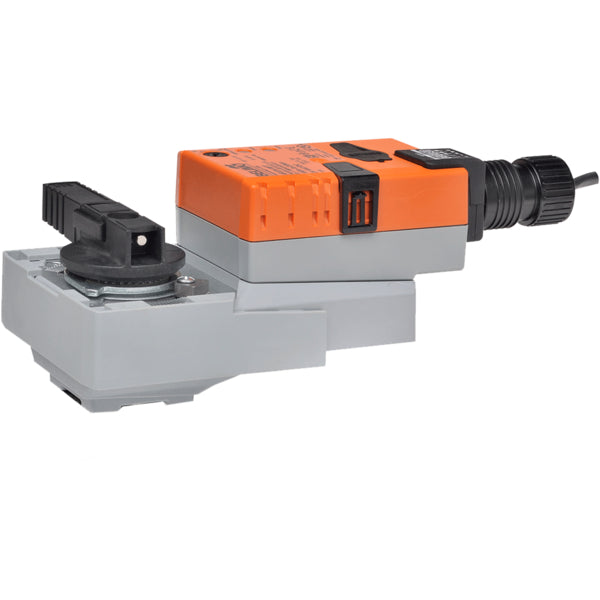

Name: LRX24-MFT
Brand: Belimo
SKU: BEL-LRX24MFT
Price: 321.30 USD
Availability: InStock

Configurable Valve Actuator, Non Fail-Safe, 24 VAC/VDC, 2-10 V, Mft/Programmable, NEMA 2

$321.30 $714.00

Shipping calculated at checkout.

In stock (13 units)

Usually ships next day

FREE SHIPPING

Description

The LRX24-MFT is a Configurable Valve Actuator that is Non fail-safe. It comes standard as a 2 to 10 VDC proportional control but can be reprogrammed on-site. You can modify voltage control, time proportional control, floating point, on/off and feedback signals too. In addition, MFT makes it easy to set parameters for running time, mechanical working range, address, status and diagnostics.

Product Specifications

Name	Value
Ambient temperature	-22...122°F [-30...50°C]
Category	Valve
Connection type	Cable
Control input	2...10 V
Control type	MFT/Programmable
Data Sheet	Download
Electrical connection	18 AWG plenum cable with 1/2" NPT conduit
Enclosure nema rating	NEMA 2
Enclosure type	UL Enclosure Type 2, IP54, NEMA 2
Fail safe	Non Fail-Safe
Output signal	2...10 V
Power consumption holding	1.2 W
Power consumption running	2.5 W
Power source	24 VAC/VDC
Power supply	24 VAC/VDC
Product category	Control Valves & Actuators
Product subcategory	Spring Return Valve Actuators
Rotation	90 Deg.
Running time	150 Second/90 deg
Series	Belimo
Short desc	Configurable Valve Actuator, Non Fail-Safe, 24 VAC/VDC, 2-10 V, Mft/Programmable, NEMA 2
Supplier part number	LRX24-MFT
Torque	45 in-lbs (5 Nm)
Type	Configurable Electric Valve Actuator
Va rating	5 VA
Variant weight	1.1

Features and Benefits

{'Features_and_Benefits_1': 'Power Consumption for Wire Sizing: 5 VA', 'Features_and_Benefits_2': 'Direction of Motion Motor: Selectable with Switch 0/1', 'Features_and_Benefits_3': 'Manual Override: External Push Button', 'Features_and_Benefits_4': 'Running Time Range (Motor): 35-150 Seconds', 'Features_and_Benefits_5': 'Protection Category: IP54', 'Features_and_Benefits_6': 'Degree of Protection NEMA: NEMA 2'}
