Belimo | SKU: LF24-S US

LF24-S US | Belimo | Dampers & Actuators

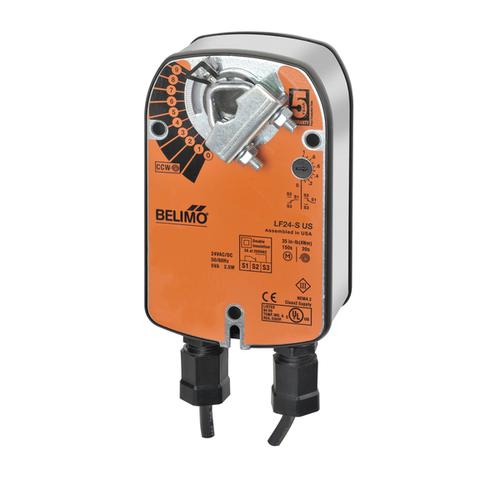

Name: LF24-S US
Brand: Belimo
SKU: BEL-LF24SUS
Price: 307.35 USD
Availability: InStock

Damper Actuator, 35 Inch-lb (4 Nm), Spring Return, AC/DC 24 V, On/Off, 1 x SPDT

$307.35 $683.00

Shipping calculated at checkout.

In stock (103 units)

Usually ships next day

FREE SHIPPING

Description

The LF24-S US is a Spring return 24 V AC Damper Actuator. It has 35 in-lb of torque and is controlled with an On/Off signal. The angle of rotation is 95 degree and it has a running time of 75 seconds.

Product Specifications

Name	Value
Ambient temperature	-22...122°F [-30...50°C]
Configuration	1 SPDT Aux Switch
Control input	On/Off
Control type	On/Off
Data Sheet	Download
Installation Instructions	Download
Electrical connection	(2) 18 GA appliance cables, 3 ft [1 m], with 1/2 in NPT conduit connectors
Enclosure nema rating	NEMA 2
Enclosure type	UL Enclosure Type 2, IP54, NEMA 2
Fail safe	Fail Safe
Height	3.23
Length	7.66
Power consumption holding	2.5 W
Power consumption running	5 W
Power source	24 VAC/VDC
Power supply	24 VAC/VDC
Product category	Dampers & Actuators
Product subcategory	Spring Return Damper Actuators
Rotation	95 Deg.
Running time	75 s
Running time fail safe	25 s
Shaft diameter	3/8...1/2 in round, centers on 1/2 in
Short desc	Damper Actuator, 35 Inch-lb (4 Nm), Spring Return, AC/DC 24 V, On/Off, 1 x SPDT
Supplier part number	LF24-S US
Torque	35 in-lb
Type	Rotary Damper Actuator, Fail Safe
Va rating	7 VA
Width	3.86

Features and Benefits

{'Features_and_Benefits_1': 'Spring return actuator', 'Features_and_Benefits_2': '(2) 3 ft, 18 GA appliance cables with 1/2" conduit connectors', 'Features_and_Benefits_3': '35 in-lb of torque', 'Features_and_Benefits_4': 'running time of 75 seconds', 'Features_and_Benefits_5': '95 degree angle of rotation'}
