Belimo
| SKU:
G215B-J+LVX120-3
55% off
G215B-J+LVX120-3 | Belimo | Control Valves & Actuators
Globe Valve, 1/2 Inch, 2-Way, 4.4Cv, 120V, Non Fail-Safe
Retail Price
$712.35
Original Price
$1,583.00
Shipping calculated at checkout.
G215B-J+LVX120-3 is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 7 days
FREE SHIPPING
Couldn't load pickup availability
Description

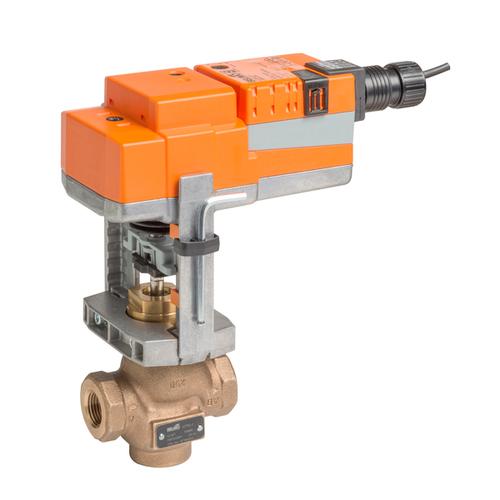

The G215B-J+LVX120-3 is a Belimo 1/2 in 2-Way globe valve assembly with a floating non-spring-return actuator. With a 4.4 Cv flow coefficient, the valve handles chilled or hot water with up to 60% glycol, or steam. The actuator runs on 100-240 VAC and includes a hand crank manual override.
Product Specifications
| Name | Value |
|---|---|
| Actuator type | Electric |
| Ambient temperature | -22...122°F [-30...50°C] |
| Application | chilled, hot water, up to 60% glycol, steam |
| Connection type | 3 ft, 18 GA appliance cable, 1/2 in conduit connector |
| Control type | On/Off/Floating Point |
| Data Sheet | Download |
| Installation Instructions | Download |
| Electrical connection | 18 AWG appliance cable, 1 m, with 1/2 in NPT |
| Enclosure nema rating | NEMA 2 |
| End fitting | Internal thread |
| Fail safe | Non Fail Safe |
| Flow characteristic | Modified Equal Percentage |
| Flow coefficient | 4.4 Cv |
| Fluid type | chilled or hot water, up to 60% glycol, steam |
| Height | 8.9 in |
| Length | 3.8 in |
| Power source | 100...240 VAC |
| Pressure rating | ANSI Class 250, up to 400 psi below 150°F |
| Product category | Control Valves & Actuators |
| Product subcategory | Non-Spring Return Valve Assemblies |
| Running time | 90 s |
| Series | Belimo |
| Short desc | Globe Valve, 1/2 Inch, 2-Way, 4.4Cv, 120V, Non Fail-Safe |
| Size | 1/2 in |
| Supplier part number | G215B-J+LVX120-3 |
| Temperature range | 20...280°F [-7...138°C] |
| Va rating | 4 VA |
| Valve pattern | 2-Way |
| Valve trim | Chrome Plated Brass |
| Valve type | Globe |
| Voltage | 120 VAC |
| Web eligible | Y |
| Width | 8.6 in |
Features and Benefits
{'Features_and_Benefits_1': 'Stroke adjusts automatically for accurate valve positioning', 'Features_and_Benefits_2': 'Sliding stroke indicators show valve position at a glance', 'Features_and_Benefits_3': 'Can be installed with the valve stem horizontal to the pipe', 'Features_and_Benefits_4': 'Self-locking coupling secures the actuator to the valve', 'Features_and_Benefits_5': 'Uses the full control signal range for precise control', 'Features_and_Benefits_6': 'Quick installation and system checkout', 'Features_and_Benefits_7': 'Flexible piping options', 'Features_and_Benefits_8': 'Ensures a correct valve-to-actuator connection'}
