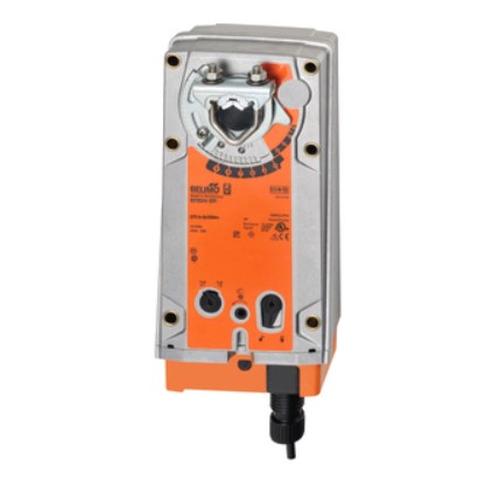

Belimo  | SKU: EFB24-SR

EFB24-SR | Belimo | Dampers & Actuators

Belimo, Damper Actuator, 270 in-lb (30 Nm), Spring Return, AC/DC 24 V, 2...10 V, modulating, EFB24-SR
$933.76 $2,075.00
Shipping calculated at checkout.

Delivery

In stock (7 units)

Usually ships next day

FREE SHIPPING

Description

The EF..24-SR series actuators provide true spring return operation for reliable failsafe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The EF..24-SR series provides 95 degree of rotation and is provided with a graduated position indicator showing 0degree to 95 degree. The EF..24- SR uses a brushless DC motor which is controlled by an Application Specific Integrated Circuit (ASIC) and a microprocessor.

Product Specifications

Name Value
Category Damper
Control input Analog / Proportional
Control type 0-20 VDC
Description The EF..24-SR series actuators provide true spring return operation for reliable failsafe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The EF..24-SR series provides 95 degree of rotation and is provided with a graduated position indicator showing 0degree to 95 degree. The EF..24- SR uses a brushless DC motor which is controlled by an Application Specific Integrated Circuit (ASIC) and a microprocessor.
Data Sheet Download
Installation Guide Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Electrical connection Cable
Enclosure type NEMA 2
Fail safe Spring Return
Features and benefits {'Features_and_Benefits_1': 'Position Feedback: 2 to 10 VDC, 0.5 mA max', 'Features_and_Benefits_2': '3 ft, 18 GA appliance cable, 1/2" conduit connector', 'Features_and_Benefits_3': '14 VA (class 2 power source)', 'Features_and_Benefits_4': 'Reversible direction with cw/ccw mounting', 'Features_and_Benefits_5': 'EFB24-SR'}
Manual override 5mm Hex Crank (3/16" Allen), Supplied
Most popular Yes
P21 delete flag false
Power consumption (holding) 4.5 W
Power consumption (running) 8 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation Selectable with switch
Running time 95 Second
Running time fail safe <20 s
Shaft diameter 1/2...1.05" round centers on 3/4" with insert 1.05" without insert
Short desc Belimo, Damper Actuator, 270 in-lb (30 Nm), Spring Return, AC/DC 24 V, 2...10 V, modulating, EFB24-SR
Sku BEL-EFB24SR
Supplier part number EFB24-SR
Torque 270 in-lbs
Type Rotary Damper Actuator - Fail-Safe
Ultra store sync us Yes
Vendor active Y
Vendor enabled Y
Yorkland id EFB24-SR

Features and Benefits

{'Features_and_Benefits_1': 'Position Feedback: 2 to 10 VDC, 0.5 mA max', 'Features_and_Benefits_2': '3 ft, 18 GA appliance cable, 1/2" conduit connector', 'Features_and_Benefits_3': '14 VA (class 2 power source)', 'Features_and_Benefits_4': 'Reversible direction with cw/ccw mounting', 'Features_and_Benefits_5': 'EFB24-SR'}
