Belimo | SKU: B207+TFRB24

B207+TFRB24 | Belimo | Control Valves & Actuators

Name: B207+TFRB24
Brand: Belimo
SKU: BEL-B207TFRB24
Price: 305.55 USD
Availability: InStock

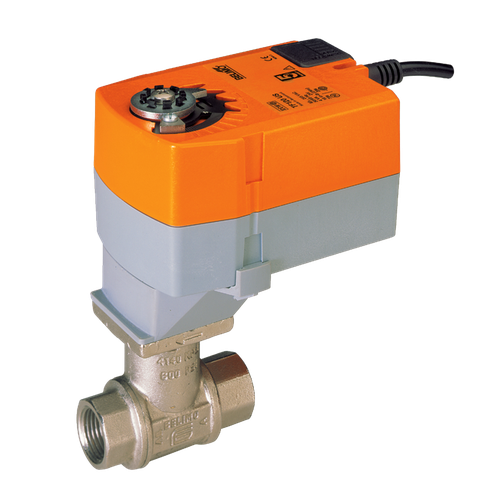

Characterized Control Valve, 1/2 Inch, 2-Way, 0.3Cv, 24V, Fail-Safe

$305.55 $679.00

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The B2 Series 2-way ball valves and B3 Series 3-way ball valves are used for two-position, floating or proportional control of HVAC hot or chilled water. Perfect for HVAC applications and Building Automation Systems, BAS, each two-way and three-way ball valve comes assembled with direct-coupled Belimo electric actuators with spring return or non-spring return operation.

Product Specifications

Name	Value
Actuator type	Electric
Ambient temperature	-22...122°F [-30...50°C]
Application	Chilled, Hot Water, up to 60% Glycol
Category	Electric Actuator Valve Assemblies
Close off pressure	200 PSI
Connection type	3 ft, 18 GA appliance cable, 1/2 in conduit connector
Control type	On/Off
Data Sheet	Download
Installation Guide	Download
Electrical connection	18 GA appliance cable, 1 m, with 1/2 in NPT
Enclosure nema rating	NEMA 2
End fitting	Internal thread
Fail safe	Fail Safe
Flow characteristic	Equal Percentage
Flow coefficient	0.3 Cv
Fluid type	chilled or hot water, up to 60% glycol
Height	0.0
Inv mast uid	15325
Length	0.0
Power source	24 VAC/VDC
Pressure rating	600 psi
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Rotation	95 Deg.
Running time	75 s
Running time fail safe	75 s
Series	Belimo
Short desc	Characterized Control Valve, 1/2 Inch, 2-Way, 0.3Cv, 24V, Fail-Safe
Size	1/2 in
Supplier part number	B207+TFRB24
Temperature range	0...250°F [-18...120°C]
Va rating	5 VA
Valve pattern	2-Way
Valve type	Characterized Control
Variant weight	0.1
Voltage	24 VAC
Width	0.0

Features and Benefits

{'Features_and_Benefits_1': '22 in-lbs [2.5 Nm] minimum', 'Features_and_Benefits_2': '<75 seconds', 'Features_and_Benefits_3': 'No Feedback', 'Features_and_Benefits_4': 'NPT female ends', 'Features_and_Benefits_5': 'Forged Brass, Nickel Plated'}
