Belimo
| SKU:
22DTH-51M
55% off

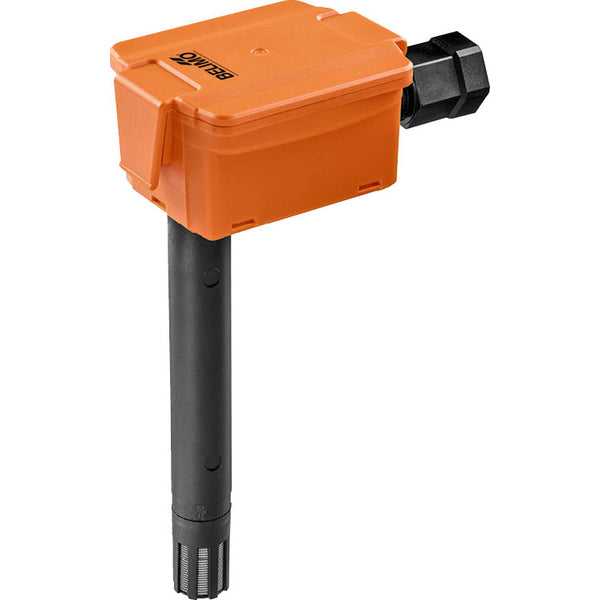

22DTH-51M | Belimo | Humidity
Duct Sensor, Humidity/Temperature, Active, 0-5 V, 0-10 V, 5.5 Inch (140MM) Probe Length
Retail Price
$227.70
Original Price
$506.00
Shipping calculated at checkout.
22DTH-51M is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 5 days
FREE SHIPPING
Couldn't load pickup availability
Description
The 22DTH-51M is a Belimo duct sensor, an active sensor (0...10 V) for measuring the relative or absolute humidity and temperature in duct applications. Instead of the humidity signal, the enthalpy or the dewpoint can be selected as an output signal. NEMA 4X / IP65 rated housing.
Product Specifications
| Name | Value |
|---|---|
| Ambient temperature | -30...120°F [-35...50°C] |
| Application | Duct Humidity/Temperature Sensor |
| Data Sheet | Download |
| Installation Instructions | Download |
| Display type | No Display |
| Electrical connection | Pluggable spring-loaded terminal block max |
| Enclosure nema rating | NEMA 4X |
| Enclosure type | NEMA 4X |
| Height | 0.0 |
| Length | 0.0 |
| Measurement range | Humidity: 0-100% RH Non-Condensing, Temperature: Active |
| Output signal | 0...5 V, 0...10 V |
| Power source | 24 VAC/VDC |
| Power supply | 24 VAC/VDC |
| Probe length | 5.5 in (140mm) |
| Product category | Humidity |
| Product subcategory | Duct Humidity |
| Sensing element | 1k Ohm Platinum RTD 385 |
| Series | Belimo |
| Short desc | Duct Sensor, Humidity/Temperature, Active, 0-5 V, 0-10 V, 5.5 Inch (140MM) Probe Length |
| Supplier part number | 22DTH-51M |
| Web eligible | Y |
| Width | 0.0 |
Features and Benefits
{'Features_and_Benefits_1': 'Measuring range 0 to 100% RH non-condensing', 'Features_and_Benefits_2': 'Accuracy ±2% between 0 to 80% RH at 77°F', 'Features_and_Benefits_3': 'Polymer-based capacitive sensor with stainless steel wire mesh filter', 'Features_and_Benefits_4': '4 measuring ranges selectable', 'Features_and_Benefits_5': 'Selectable 0-5 V or 0-10 V output', 'Features_and_Benefits_6': '24 VAC/VDC power', 'Features_and_Benefits_7': 'NEMA 4X housing', 'Features_and_Benefits_8': 'Pluggable spring-loaded terminal block'}
