Belimo | SKU: 22ADP-586

22ADP-586 | Belimo | Pressure

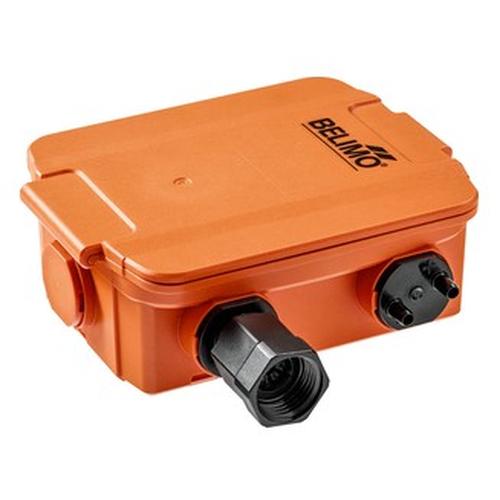

Name: 22ADP-586
Brand: Belimo
SKU: BEL-22ADP586
Price: 219.15 USD
Availability: InStock

Differential Pressure Sensor, 24V AC/DC, 0 to 5V, 0 to 10V, 4 to 20mA, 0 to 28 Inch WC [0 to 700Pa]

$219.15 $487.00

Shipping calculated at checkout.

In stock (1 units)

Usually ships next day

FREE SHIPPING

Description

Differential pressure transmitter with 8 selectable ranges and outputs 0...5 V, 0...10 V or 4...20 mA. For monitoring the differential pressure of air and other non-flammable and non-aggressive gases. Typical application in HVAC systems for monitoring air filters, fans V-belts as well as the use in pressure differential systems.

Product Specifications

Name	Value
Ambient temperature	14...122°F [-10...50°C]
Category	Pressure
Data Sheet	Download
Display type	No Display
Electrical connection	Pluggable spring-loaded terminal block max
Enclosure nema rating	NEMA 4X
Input voltage	24 VAC/VDC
Output signal	0 to 5 V, 0 to 10 V, 4 to 20 mA
Power source	24 VAC/VDC
Pressure range	0 to 28 inch WC [0 to 700 Pa]
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Series	Belimo
Short desc	Differential Pressure Sensor, 24V AC/DC, 0 to 5V, 0 to 10V, 4 to 20mA, 0 to 28 Inch WC [0 to 700Pa]
Supplier part number	22ADP-586
Type	Differential Pressure Sensor Air
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Degree of Protection IP65, NEMA 4X'}
