ACI | SKU: A/AN-PO-18"-CHP

A/AN-PO-18"-CHP | ACI | Temperature Sensors & Transmitters

Name: A/AN-PO-18"-CHP
Brand: ACI
SKU: ACI-AANPO18CHP
Price: 78.54 USD
Availability: InStock

146380, 10,000 Ohm Thermistor (Type III), Connection Head Probe, 1/2 x 1/2" NPT, 18 Inch Probe

$78.54 $128.00

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

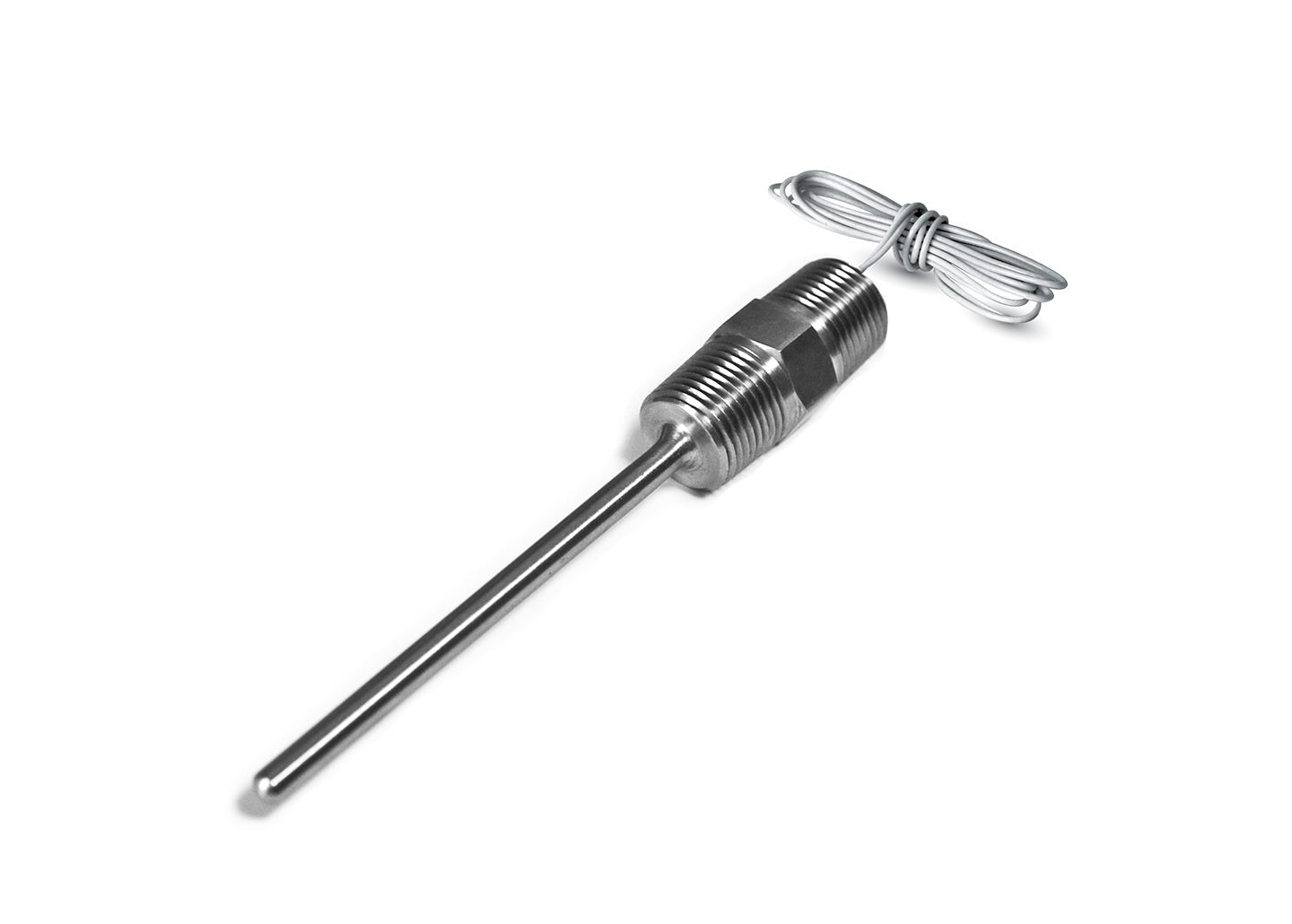

The ACI Connection Head Probe Series features a 1/4 Inch diameter stainless steel probe with two, 14 or 24 inch 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types. ACI offers the probe with double ended Ã‚ ½ Inch NPT Threaded connections. This provides connections to existing service entry boxes. The sensors in this series are manufactured using ACIâ‚¬â„¢s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response time using our high quality, thermally conductive epoxy.

Product Specifications

Name	Value
Cable length	24 Inch Leads
Category	Duct and Immersion
Configuration	1/2 x 1/2 NPT Process Fitting
Data Sheet	Download
Features and benefits	Applications: Roof Top Units, Air Handlers, Supply/Discharge Air/Return/Mixed/Exhaust Air Duct Temperature Sensing, Immersion Temperature Sensors(used with thermowells), Replacement Temperature Sensors.
In_stock	false
P21 delete flag	false
Probe length	18 Inch
Probe material	Stainless Steel 304
Product category	Temperature Sensors & Transmitters
Product subcategory	Immersion
Restricted class id	NULL
Restricted item	false
Series	ACI
Short desc	146380, 10,000 Ohm Thermistor (Type III), Connection Head Probe, 1/2 x 1/2" NPT, 18 Inch Probe
Strategic_value	20
Supplier part number	A/AN-PO-18"-CHP
Ultra store sync us	Yes
Vendor enabled	Y

Features and Benefits

Applications: Roof Top Units, Air Handlers, Supply/Discharge Air/Return/Mixed/Exhaust Air Duct Temperature Sensing, Immersion Temperature Sensors(used with thermowells), Replacement Temperature Sensors.
