Combustion & Flame Safety | SKU: VR9205Q1507/U

VR9205Q1507/U | Resideo | Combustion & Flame Safety

Name: VR9205Q1507/U
Brand: Resideo
SKU: RES-VR9205Q1507U
Price: 305.56 USD
Availability: InStock

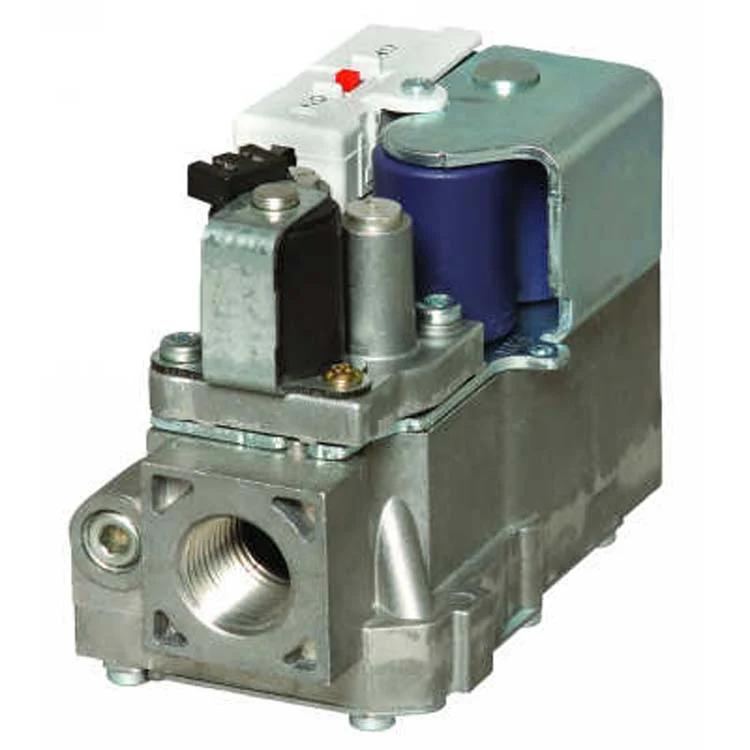

Two Stage, 24 VAC, Standard Opening, Direct Ignition Combination Gas Valve, 1/2 x 1/2 Inch, 1.7 Inch WC Low, 3.5 Inch WC High

$305.56 $439.22

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The VR9205Q Direct Ignition Combination 2-Stage Gas Controls are used in gas-fired appliances with up to 140 kBTU/Hour capacity at 1 Inch WC pressure drop. They have been optimized for direct ignition applications and include a manual switch, two automatic operators and a pressure regulator. The valve may be used on either Natural gas or LP gas applications.

Product Specifications

Name	Value
Capacity	At 1 in WC p.d. - 140,000 BTU/Hour: 20,000 BTU/Hour Minimum at High Fire, 8,000 BTU Minimum at Low Fire: 200,000 BTU/Hour Maximum at Maximum Fire
Category	Gas Valves
Configuration	Two Stage, Standard Opening
Data Sheet	Download
Enclosure nema rating	24 VAC 50/60 Hz
Includes	6 in Wire Harness; LP Conversion Kit
Inv mast uid	273037
Pressure regulator setting	1.7 in WC Low; 3.5 in WC High (0.42 kPa Low; 0.87 kPa High)
Product category	Combustion & Flame Safety
Product subcategory	Gas Valves & Actuators
Series	Resideo
Short desc	Two Stage, 24 VAC, Standard Opening, Direct Ignition Combination Gas Valve, 1/2 x 1/2 Inch, 1.7 Inch WC Low, 3.5 Inch WC High
Size	1/2 x 1/2 in
Supplier part number	VR9205Q1507/U
Type	Direct Ignition Combination Gas Valve
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Pressure Regulator: Adjustment Range: 0.9 to 4 Inch WC', 'Features_and_Benefits_2': 'Body Pattern: Straight-Through', 'Features_and_Benefits_3': 'Type of Fuel: Natural (LP if Conversion Kit Included)', 'Features_and_Benefits_4': 'Electrical Connections: 1/4 Inch Quick-Connect Male Terminals'}
