Combustion & Flame Safety | SKU: VR8345M4302/U

VR8345M4302/U | Resideo | Combustion & Flame Safety

Name: VR8345M4302/U
Brand: Resideo
SKU: VR8345M4302/U
Price: 285.09 USD
Availability: InStock

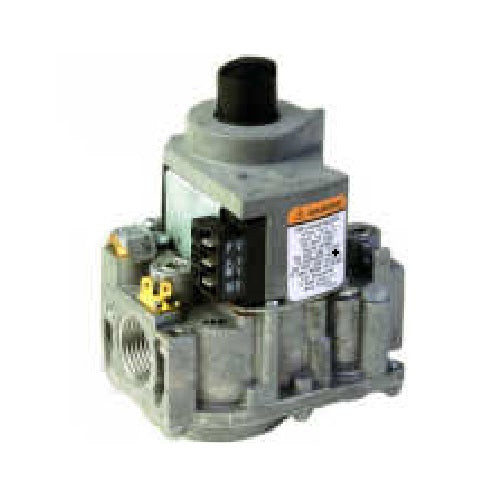

Resideo, Universal Single Stage, 24 VAC, Standard Opening, Intermittent/Direct Ignition Gas Valve, 3/4 x 3/4 Inch, Setpoint 3.5 Inch WC, VR8345M4302/U

$285.09 $409.80

Shipping calculated at checkout.

In stock (43 units)

Usually ships next day

FREE SHIPPING

Description

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 VAC, gas-fired appliances, with capacities from 20 to 200 cf/Hour (VR8245M) or 30 to 415 cf/Hour (VR8345M).

Product Specifications

Name	Value
Capacity	At 1 Inch WC p.d. - 300,000 BTU/Hour: 30,000 BTU/Hour Minimum: 415,000 BTU/Hour Maximum Natural Gas
Category	Gas Valves
Configuration	Single Stage, Standard Opening
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Enclosure nema rating	24 VAC 50/60 Hz
Features and benefits	Internal Inlet Screen Blocks Contaminants in Gas Line from Entering Valve \| Clearly Marked, Keyed Terminal Block Allows Quick Attachment of Wires and IP/DSI/HSI Jumper \| All Adjustments and Wiring Connections Accessible from Top of Control \| Includes Converter Kit to Adapt from Natural to LP Gas \| Compact Size \| Four-Inch Swing Radius Allows Easy Rotation into Position Inside the Tightest Furnace Vestibules \| For Use with Natural or Manufactured Gas or LP Gas \| Replaces Many IP, HSI or DSI Gas Control \| Control Includes Manual Valve, Two Automatic Operators, Pressure Regulator, Pilot Adjustment, Pilot Plug and Ignition Adapter
Includes	Natural to LP Conversion Kit, (2) 3/4 x 1/2 Inch Reducer Bushings
Most popular	Yes
P21 delete flag	false
Pressure regulator setting	3.5 Inch WC (0.87 kPa)
Product category	Combustion & Flame Safety
Product subcategory	Gas Valves & Actuators
Restricted class id	NULL
Restricted item	false
Series	Resideo
Short desc	Resideo, Universal Single Stage, 24 VAC, Standard Opening, Intermittent/Direct Ignition Gas Valve, 3/4 x 3/4 Inch, Setpoint 3.5 Inch WC, VR8345M4302/U
Size	3/4 x 3/4 Inch
Supplier part number	VR8345M4302/U
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true
Yorkland id	VR8345M4302/U

Features and Benefits

Internal Inlet Screen Blocks Contaminants in Gas Line from Entering Valve | Clearly Marked, Keyed Terminal Block Allows Quick Attachment of Wires and IP/DSI/HSI Jumper | All Adjustments and Wiring Connections Accessible from Top of Control | Includes Converter Kit to Adapt from Natural to LP Gas | Compact Size | Four-Inch Swing Radius Allows Easy Rotation into Position Inside the Tightest Furnace Vestibules | For Use with Natural or Manufactured Gas or LP Gas | Replaces Many IP, HSI or DSI Gas Control | Control Includes Manual Valve, Two Automatic Operators, Pressure Regulator, Pilot Adjustment, Pilot Plug and Ignition Adapter
