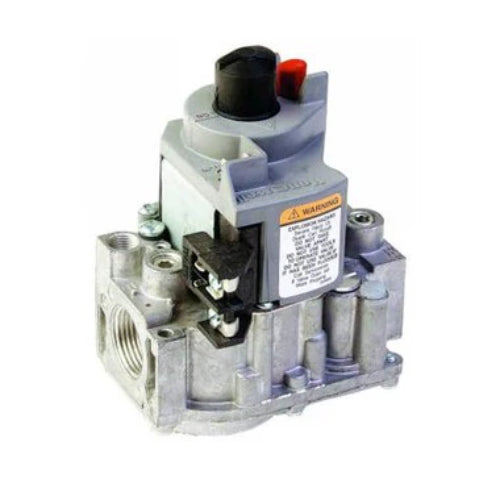

Combustion & Flame Safety  | SKU: VR8300A4516/U

VR8300A4516/U | Resideo | Combustion & Flame Safety

Single Stage, 24 VAC, Standard Opening, Standing Pilot Gas Valve, 3/4 x 3/4 Inch, Setpoint 3.5 Inch WC
$345.74 $497.00
Shipping calculated at checkout.

Delivery

In stock (6 units)

Usually ships next day

FREE SHIPPING

Description

Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cf/Hour.

Product Specifications

Name Value
Capacity At 1 in WC p.d. - 200,000 BTU/Hour: 30,000 BTU/Hour Minimum: 300,000 BTU/Hour Maximum Natural Gas
Category Gas Valves
Configuration Standard Opening
Data Sheet Download
Enclosure nema rating 24 VAC 50/60 Hz
Includes Q340 Thermocouple; Natural to LP Conversion Kit; Two 3/4 x 1/2 in Reducer Bushings; ECO Adaptor
Inv mast uid 273026
Pressure regulator setting 3.5 in WC (0.87 kPa)
Product category Combustion & Flame Safety
Product subcategory Gas Valves & Actuators
Series Resideo
Short desc Single Stage, 24 VAC, Standard Opening, Standing Pilot Gas Valve, 3/4 x 3/4 Inch, Setpoint 3.5 Inch WC
Size 3/4 x 3/4 in
Supplier part number VR8300A4516/U
Type Standing Pilot Combination Gas Control
Variant weight 0.1

Features and Benefits

{'Features_and_Benefits_1': 'Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure under Wide Fluctuations in Gas Supply Pressure', 'Features_and_Benefits_2': 'Compatible with ECO Connector', 'Features_and_Benefits_3': 'All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control', 'Features_and_Benefits_4': 'Meets Codes Requiring Dual Safety Shut-Off', 'Features_and_Benefits_5': 'Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes when Call for Heat Ends', 'Features_and_Benefits_6': 'Application: Single Stage', 'Features_and_Benefits_7': 'LITE-RITE (OFF-PILOT-ON) Lighting Sequence', 'Features_and_Benefits_8': 'Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator; Closes If Gas or Power Supply is Interrupted', 'Features_and_Benefits_9': 'Control Includes Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment'}
