Combustion & Flame Safety | SKU: VR4300A4502/U

VR4300A4502/U | Resideo | Combustion & Flame Safety

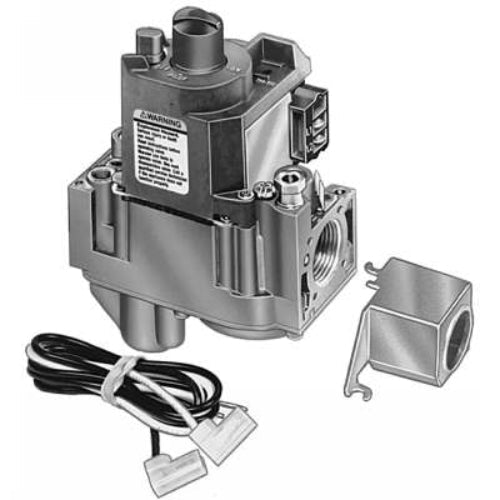

Name: VR4300A4502/U
Brand: Resideo
SKU: RES-VR4300A4502U
Price: 606.00 USD
Availability: InStock

Single Stage, 120 VAC, Standard Opening, Standing Pilot Gas Valve, 3/4 x 3/4 Inch, Setpoint 3.5 Inch WC

$606.00 $871.14

Shipping calculated at checkout.

In stock (1 units)

Usually ships next day

FREE SHIPPING

Description

Combination gas control for use in 120 VAC, gas-fired, standing pilot appliances with capacities from 30 to 300 cf/Hour.

Product Specifications

Name	Value
Capacity	200,000 BTU/hr 1 in. PD; 30,000 BTU/hr Minimum; 300,000 BTU/hr Maximum
Category	Gas Valves
Configuration	Single Stage; Standard Opening
Data Sheet	Download
Enclosure nema rating	120 VAC 60 Hz
Includes	Natural to LP Gas Conversion Kit; (1) 1/2 x 3/8 Inch Reducer Bushing; (2) 3/4 x 1/2 Inch Reducer Bushings
Inv mast uid	118905
Pressure regulator setting	3.5 Inch WC (0.87 kPa)
Product category	Combustion & Flame Safety
Product subcategory	Gas Valves & Actuators
Series	Resideo
Short desc	Single Stage, 120 VAC, Standard Opening, Standing Pilot Gas Valve, 3/4 x 3/4 Inch, Setpoint 3.5 Inch WC
Size	3/4 x 3/4 Inch
Supplier part number	VR4300A4502/U
Type	Line Voltage Standing Pilot Gas Valve
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure under Wide Fluctuations in Gas Supply Pressure', 'Features_and_Benefits_2': 'Compatible with ECO Connector', 'Features_and_Benefits_3': 'All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control', 'Features_and_Benefits_4': 'Meets Codes Requiring Dual Safety Shut-Off', 'Features_and_Benefits_5': 'Compact Size', 'Features_and_Benefits_6': 'Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes when Call for Heat Ends', 'Features_and_Benefits_7': 'Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator; Closes If Gas or Power Supply is Interrupted', 'Features_and_Benefits_8': 'Control Includes Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment', 'Features_and_Benefits_9': 'LITE-RITE (OFF-PILOT-ON) Lighting Sequence', 'Features_and_Benefits_10': 'Provides Two Automatic Valves'}
