Data Center Products  | SKU: R8222V1003/U

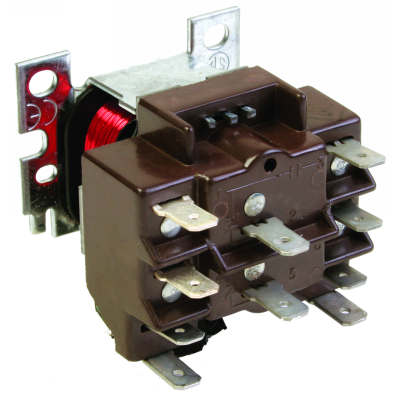

R8222V1003/U | Resideo | Relays & Contactors

General Purpose Relay, DPDT (1 Pole & 1 Pilot Duty), 24 VAC Coil, 3 Amp at 480 VAC; 6 Amp 208/240/277 VAC, 240 VAC; 12 Amp at 120 VAC
$52.74 $75.80
Shipping calculated at checkout.

R8222V1003/U is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Provide general purpose switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.

Product Specifications

Name Value
Category General Purpose, Power Relays
Coil voltage 24 VAC
Contact form DPDT (1 Pole & 1 Pilot Duty)
Contact rating (AFL): 3 A at 480 VAC; 6 A 208/240/277 VAC, 240 VAC; 12 A at 120 VAC
Data Sheet Download
Enclosure type Open
Inv mast uid 272670
Mounting type Surface Mount
Product category Relays & Contactors
Product subcategory General Purpose Relays
Series R8222
Short desc General Purpose Relay, DPDT (1 Pole & 1 Pilot Duty), 24 VAC Coil, 3 Amp at 480 VAC; 6 Amp 208/240/277 VAC, 240 VAC; 12 Amp at 120 VAC
Supplier part number R8222V1003/U
Type General Purpose Relay
Variant weight 0.1

Features and Benefits

{'Features_and_Benefits_1': 'Laminated magnet construction for higher efficiency.', 'Features_and_Benefits_2': 'Plug compatible with Steveco 90-340 and Mars 90340.', 'Features_and_Benefits_3': 'Base designed for easy replacement of competitive relays.', 'Features_and_Benefits_4': 'Un-Taped coil assures cooler operation.', 'Features_and_Benefits_5': 'Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.'}
