Control Valves & Actuators | SKU: DS06-101-SUT-LF/U

DS06-101-SUT-LF/U | Resideo | Control Valves & Actuators

Name: DS06-101-SUT-LF/U
Brand: Resideo
SKU: RES-DS06101SUTLFU
Price: 171.41 USD
Availability: InStock

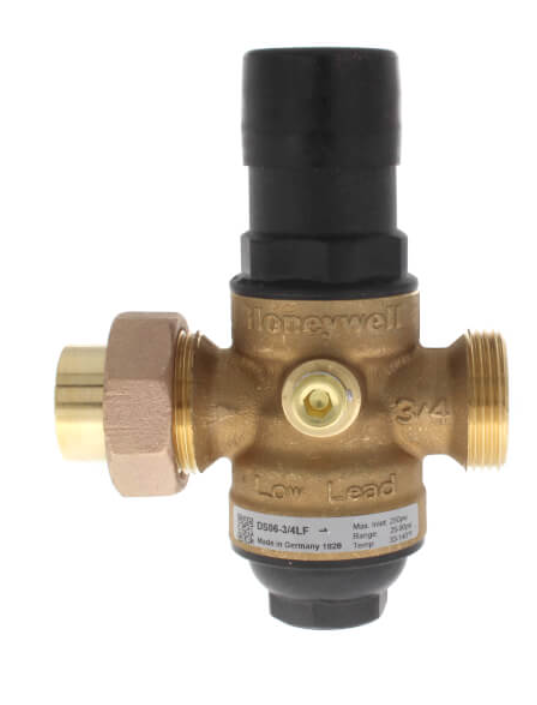

3/4 Inch DialSet Female NPT Single Union, Internally-Threaded Pressure Regulating Valve

$171.41 $246.39

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The DS06 Dial Set?« Pressure Regulating Valve from Resideo is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).

Product Specifications

Name	Value
Body style	Bronze
Category	Pressure Regulating Valves
Data Sheet	Download
Inv mast uid	272359
Pressure range	25-90 PSI
Product category	Control Valves & Actuators
Product subcategory	Pressure Regulating Valves
Series	DS06
Short desc	3/4 Inch DialSet Female NPT Single Union, Internally-Threaded Pressure Regulating Valve
Supplier part number	DS06-101-SUT-LF/U
Temperature range	140 Degree F. Maximum

Features and Benefits

Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant | Built in strainer to simplify maintenance | 1/4" NPT tap accessible from both sides to validate output | Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications. | Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable | Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single-union or double-union configurations. | Built-In Dial-Set- no guage is needed to install or set static pressure.
