Dampers & Actuators  | SKU: M9194E1000/U

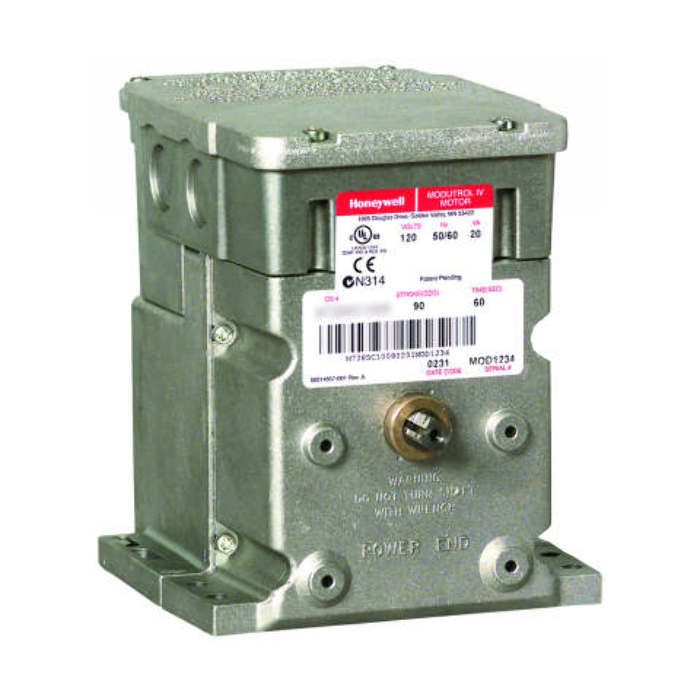

M9194E1000/U | Honeywell | Dampers & Actuators

Series 90 Modutrol IV Actuator with Proportional 135 Ohm Control, Modutrol Motor, Non-Spring Return, 300 lbs-Inch, 24 VAC, Adjustable 90-160 deg, 120-240 Seconds, 1x Auxiliary Switch
$4,153.88 $9,886.25
Shipping calculated at checkout.

M9194E1000/U is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Series 90 Modutrol IV Motors are non-spring return modulating proportional control motors. These motors are used with controllers that provide a Series 90 output to operate dampers or valves.

Product Specifications

Name Value
Application Damper
Category Foot Mount
Data Sheet Download
Power supply 24 VAC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Rotation CW
Running time 120-240 Second
Series Honeywell
Short desc Series 90 Modutrol IV Actuator with Proportional 135 Ohm Control, Modutrol Motor, Non-Spring Return, 300 lbs-Inch, 24 VAC, Adjustable 90-160 deg, 120-240 Seconds, 1x Auxiliary Switch
Supplier part number M9194E1000/U
Torque 300 lbs-Inch
Type Non-Spring Return

Features and Benefits

{'Features_and_Benefits_1': 'Replaces M934A/D, M941, M944A/C/D, M945A/D/F, M954, M965, and M975 Motors', 'Features_and_Benefits_10': 'Certifications: UL Listed: File Number ED4436, Guide Number XAPX; CSA Certified: General Listing File Number LR1620, Guide 400-E', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Models Available with Factory Installed Transformer, or a Field Added Internal Transformer', 'Features_and_Benefits_4': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_5': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_6': 'Motors have Field Adjustable Stroke (90 deg to 160 deg)', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_9': 'Nominal Timing Standard of 30 Seconds (90 deg Stroke), and 60 Seconds (160 deg Stroke); Other Timings Available'}
