Dampers & Actuators  | SKU: M7284C1083/U

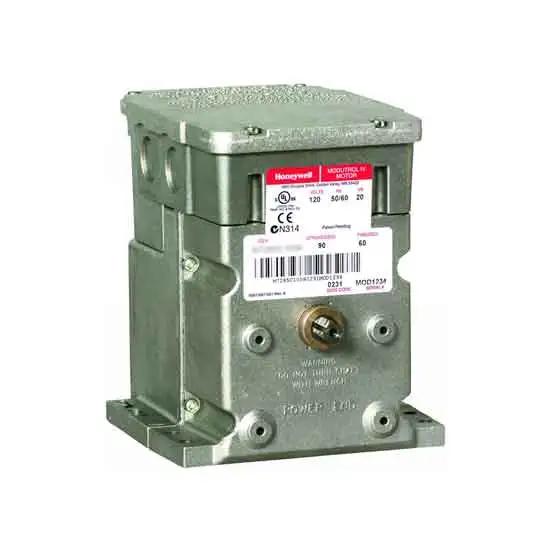

M7284C1083/U | Honeywell | Dampers & Actuators

Modutrol IV Motor Actuator, Non-Spring Return, 150 lbs-Inch, 24/120/230 VAC, Modulating (4-20 mA), Fixed 90 deg, 30 Seconds
$1,464.05 $3,484.45
Shipping calculated at checkout.

Delivery

In stock (3 units)

Usually ships next day

FREE SHIPPING

Description

Series 72 Modutrol IV Motors are non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.

Product Specifications

Name Value
Application Damper
Category Foot Mount
Control type Modulating (4-20 mA)
Data Sheet Download
Height 0.0
Length 0.0
Power supply 24/120/230 VAC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Rotation CW
Running time 30 Second
Series Honeywell
Short desc Modutrol IV Motor Actuator, Non-Spring Return, 150 lbs-Inch, 24/120/230 VAC, Modulating (4-20 mA), Fixed 90 deg, 30 Seconds
Supplier part number M7284C1083/U
Torque 150 lbs-Inch
Type Non-Spring Return
Upc yorkland
Variant weight 0.1
Width 0.0

Features and Benefits

{'Features_and_Benefits_1': 'Replaces M734H/J, M744ST/Y and M745L/S/T/Y Motors', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Motor and Circuitry Operate from 24 VAC; Models Available with Factory Installed Transformer, or a Field Added Internal Transformer', 'Features_and_Benefits_4': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_5': 'Fixed Stroke (90 deg)', 'Features_and_Benefits_6': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_7': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_8': 'UL Listed: File Number E4436; Guide Number XAPX for USA and Canada'}
