Dwyer  | SKU: VA23429

VA23429 | Dwyer | Flow

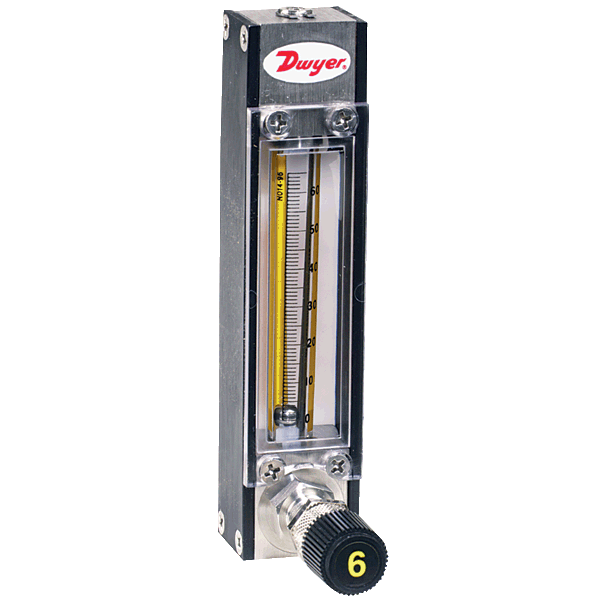

Dwyer, Variable Area Glass Flowmeter, Glass Float, Max. Flow Rate 0.792 SCFH (374 ml/min) Air, 0.087 GPH (5.5 ml/min) Water VA23429
$753.74
Shipping calculated at checkout.

VA23429 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The Series VA Variable Area Glass Flowmeters are designed with easy to read universal mm scale and supplied with correlation charts containing calibration data for air and water. Glass flowmeters are suitable for metering carrier gases, liquid and gas measurement in pilot plants, laboratories, process flow and level indicating. Units are equipped with a standard 6-turn needle valve for flow rate control. High precision metering valves with non-rising stems (sold separately) are available for high sensitivity control and resolution - particularly suited for very low flow rates. Flowmeters are shipped completely assembled and ready for panel mounting. Use an optional acrylic tripod base to convert to self-standing bench mounting.

Product Specifications

Name Value
Category Flow Meters
Configuration Brass End Fittings
Data Sheet Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits Accuracy: +/- 2% Full Scale | Wetted Materials: Flowtube: Borosilicate Glass, Floats: Glass or SS (Sapphire, Carboloy and Tantalum are Optional), Float stops: PTFE, End Fittings: Anodized Aluminum, 316 SS, Brass or PTFE, Packings: Fluoroelastomer, O-Rings: Buna-N on Brass Models | Service: Compatible Gases or Liquids | High Precision Metering Valves with Non-Rising Stems are Available for High Sensitivity Control and Resolution for Very Low Flow Rate | No Additional Installation Required with Optional Acrylic Tripod Base Which Allows for Self-Standing Bench Mounting | Permanently Fused Ceramic Scale with Vertical Locator Line Reduces Parallax and Eye Fatigue Saving Time | Pressure Limits: 200 psig (13.8 bar) | Standard 6-Turn Needle Valve for Flow Rate Control Eliminating the Need for a Separate Valve Reducing Cost | Long Operating Life with Thick Polycarbonate Front Shield That Protects Tube From Breakage and Serves as a Magnifying Lens to Enhance Reading Resolution
Float Glass
Material Borosilicate Glass Flowtube; PTFE Float Stop
P21 delete flag false
Product category Flow
Product subcategory Gas Flow Meters
Range 0.792 SCFH (374 ml/min) Air, 0.087 GPH (5.5 ml/min) Water
Restricted class id NULL
Restricted item false
Scale 150mm
Series Dwyer VA Series
Short desc Dwyer, Variable Area Glass Flowmeter, Glass Float, Max. Flow Rate 0.792 SCFH (374 ml/min) Air, 0.087 GPH (5.5 ml/min) Water VA23429
Size 1/8 Inch Female NPT
Supplier part number VA23429
Ultra store sync us Yes
Vendor active Y
Vendor enabled true

Features and Benefits

Accuracy: +/- 2% Full Scale | Wetted Materials: Flowtube: Borosilicate Glass, Floats: Glass or SS (Sapphire, Carboloy and Tantalum are Optional), Float stops: PTFE, End Fittings: Anodized Aluminum, 316 SS, Brass or PTFE, Packings: Fluoroelastomer, O-Rings: Buna-N on Brass Models | Service: Compatible Gases or Liquids | High Precision Metering Valves with Non-Rising Stems are Available for High Sensitivity Control and Resolution for Very Low Flow Rate | No Additional Installation Required with Optional Acrylic Tripod Base Which Allows for Self-Standing Bench Mounting | Permanently Fused Ceramic Scale with Vertical Locator Line Reduces Parallax and Eye Fatigue Saving Time | Pressure Limits: 200 psig (13.8 bar) | Standard 6-Turn Needle Valve for Flow Rate Control Eliminating the Need for a Separate Valve Reducing Cost | Long Operating Life with Thick Polycarbonate Front Shield That Protects Tube From Breakage and Serves as a Magnifying Lens to Enhance Reading Resolution
