Dwyer | SKU: TFM-LP04

TFM-LP04 | Dwyer | Flow

Name: TFM-LP04
Brand: Dwyer
SKU: DWY-TFMLP04
Price: 1684.60 USD
Availability: InStock

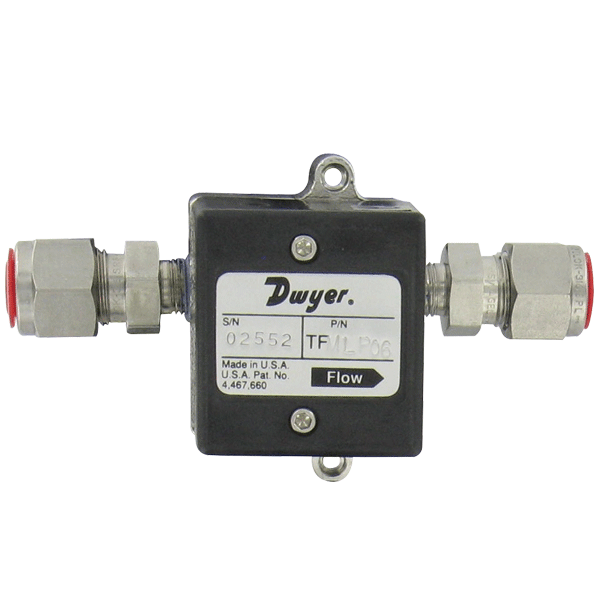

Liquid Turbine Flowmeter, Range .32 to 3.2 GPH (0.02 to 0.2 LPM), 1/4 Inch OD Connection

$1,684.60

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series TFM-LP Liquid Flowmeters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC and pulsed output signal for recording and data logging. A power adapter or mating cable assembly is required for operation.

Product Specifications

Name	Value
Category	Flow Meters
Data Sheet	Download
Inv mast uid	322029
Product category	Flow
Product subcategory	Gas Flow Meters
Range	.32 to 3.2 GPH (0.02 to 0.2 LPM)
Scale	0-5 VDC Output
Series	Dwyer TFM-LP Series
Short desc	Liquid Turbine Flowmeter, Range .32 to 3.2 GPH (0.02 to 0.2 LPM), 1/4 Inch OD Connection
Size	1/4 Inch OD
Supplier part number	TFM-LP04

Features and Benefits

Power Supply: 11.5 to 15 VDC | Accuracy: +/- 1% of FS | Design Accurately Measures Flow Rates with No Zero Drift and No Required Maintenance | Wetted Materials: 316 SS, Acetal, Sapphire, Glass, Epoxy, and Fluoroelastomer | Service: Clean Liquids Compatible with Wetted Materials | High Repeatability with Patented Microturbine Design | Linearity: +/- 1% of FS | Temperature Limits: 41 to 131 deg F (5 to 55 deg C), Storage: 32 to 158 deg F (0 to 70 deg C), Sensitivity: ±0.2 Percentage of FS per deg C | Rugged 316 SS Body
