Dwyer | SKU: TFM-LI07

TFM-LI07 | Dwyer | Flow

Name: TFM-LI07
Brand: Dwyer
SKU: DWY-TFMLI07
Price: 2321.86 USD
Availability: InStock

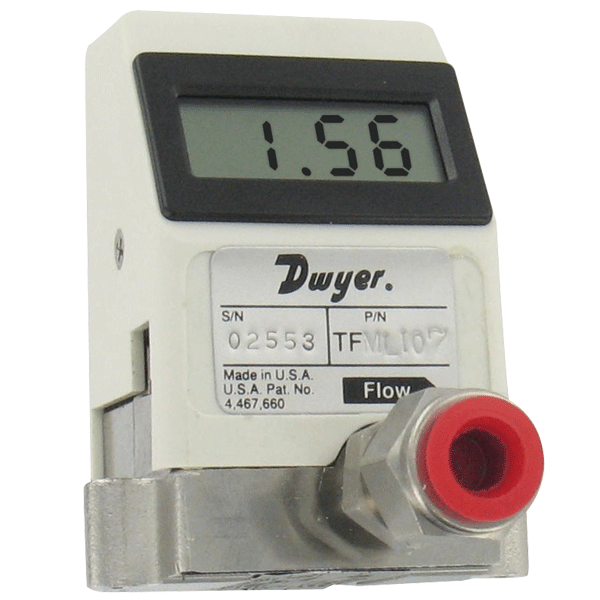

Liquid Turbine Flowmeter, Range 3.2 to 32 GPH (0.2 to 2 LPM), 1/4 Inch OD Connection

$2,321.86

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Series TFM-LI Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A 3-1/2 digit LCD informs the user of the actual flow rate. A power adapter or mating cable assembly is required for operation.

Product Specifications

Name	Value
Category	Flow Meters
Data Sheet	Download
Inv mast uid	322027
Product category	Flow
Product subcategory	Gas Flow Meters
Range	3.2 to 32 GPH (0.2 to 2 LPM)
Scale	3-1/2 Digit LCD
Series	Dwyer TFM-LI Series
Short desc	Liquid Turbine Flowmeter, Range 3.2 to 32 GPH (0.2 to 2 LPM), 1/4 Inch OD Connection
Size	1/4 Inch OD
Supplier part number	TFM-LI07

Features and Benefits

Power Supply: 11.5 to 15 VDC | Pressure Limits: 500 psig (34.5 bar) | Power Consumption: 35 mA @ 12 VDC | Linearity: +/- 1% of Full Scale | Repeatability: +/- 0.2% of Full Scale | Accuracy: +/- 1% of Full Scale | Temperature Limits: 41 to 131 deg F (5 to 55 deg C), Storage: 32 to 158 deg F (0 to 70 deg C), Sensitivity: +/- 0.2% of Full Scale Per deg C | Wetted Materials: 316 SS, Acetal, Sapphire, Glass, Epoxy, and Fluoroelastomer | Service: Clean Liquids Compatible with Wetted Materials
