Dwyer  | SKU: DR100140

DR100140 | Dwyer | Flow

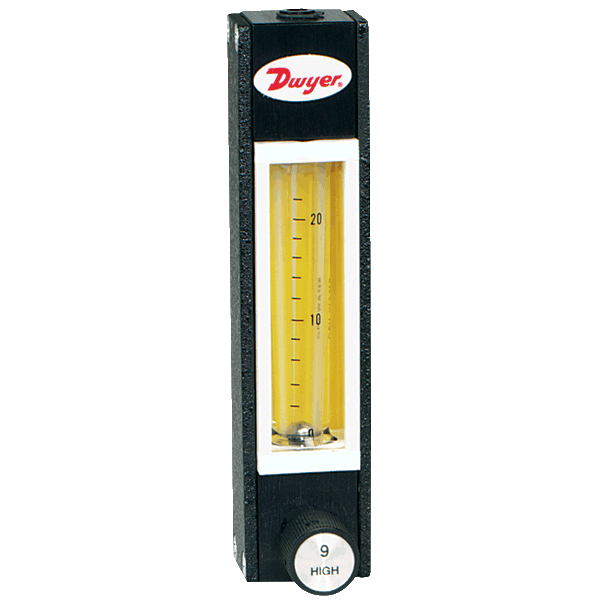

Dwyer, Direct Reading Glass Flowmeter, Glass Float, Flow Rate 0.13 GPH Water DR100140
$627.97
Shipping calculated at checkout.

DR100140 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The Series DR Direct Read Variable Area Glass Flowmeters are ideal for the direct flow measurement of air, water, and other commonly used gases. These flowmeters are designed with direct read scales with no need for correlation charts. They feature borosilicate glass tubes in 150 Millimeter or 65 Millimeter scales with aluminum and SS metering valve options. Flowmeters are shipped completely assembled and include standard panel mounting hardware for quick installation.

Product Specifications

Name Value
Category Flow Meters
Configuration Without Valve
Data Sheet Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits Temperature Limits: 250 deg F (121 deg C) | Wetted Materials: Flowtube: Borosilicate Glass; Float: 316 SS (Black Glass as Indicated); Float Stops: PTFE; End Fittings: Anodized Aluminum; O-Rings: Buna-N on Aluminum Models | Accuracy: +/- 5% FS at 70 Deg. F (21.1 Deg. C.) | Accuracy: ±5 Percentage FS @ 70 deg F (21.1 deg C) and 14.7 psia (1 atm Absolute) | Increased Protection with Included Safety Blow-Out Back Panel for Added Safety | Long Operating Life with Thick Polycarbonate Front Shield That Protects Tube From Breakage and Serves as a Magnifying Lens to Enhance Reading Resolution | Service: Compatible Gases or Liquids | Optional Needle Valve for Flow Rate Control Eliminating the Need for A Separate Valve Reducing Cost | Permanently Fused Ceramic Scale with Vertical Locator Line, Reflective Lens Background and 1.5 x Magnification Lens Reduces Parallax and Eye Fatigue Saving Time
Float Glass
Material Aluminum End Fittings
P21 delete flag false
Product category Flow
Product subcategory Gas Flow Meters
Range 0.13 GPH Water
Restricted class id NULL
Restricted item false
Scale 65mm
Series Dwyer DR Series
Short desc Dwyer, Direct Reading Glass Flowmeter, Glass Float, Flow Rate 0.13 GPH Water DR100140
Size 1/8 Inch Female NPT
Supplier part number DR100140
Ultra store sync us Yes
Vendor active Y
Vendor enabled true

Features and Benefits

Temperature Limits: 250 deg F (121 deg C) | Wetted Materials: Flowtube: Borosilicate Glass; Float: 316 SS (Black Glass as Indicated); Float Stops: PTFE; End Fittings: Anodized Aluminum; O-Rings: Buna-N on Aluminum Models | Accuracy: +/- 5% FS at 70 Deg. F (21.1 Deg. C.) | Accuracy: ±5 Percentage FS @ 70 deg F (21.1 deg C) and 14.7 psia (1 atm Absolute) | Increased Protection with Included Safety Blow-Out Back Panel for Added Safety | Long Operating Life with Thick Polycarbonate Front Shield That Protects Tube From Breakage and Serves as a Magnifying Lens to Enhance Reading Resolution | Service: Compatible Gases or Liquids | Optional Needle Valve for Flow Rate Control Eliminating the Need for A Separate Valve Reducing Cost | Permanently Fused Ceramic Scale with Vertical Locator Line, Reflective Lens Background and 1.5 x Magnification Lens Reduces Parallax and Eye Fatigue Saving Time
