Data Center Products | SKU: DM-202

DM-202 | Dwyer | Pressure

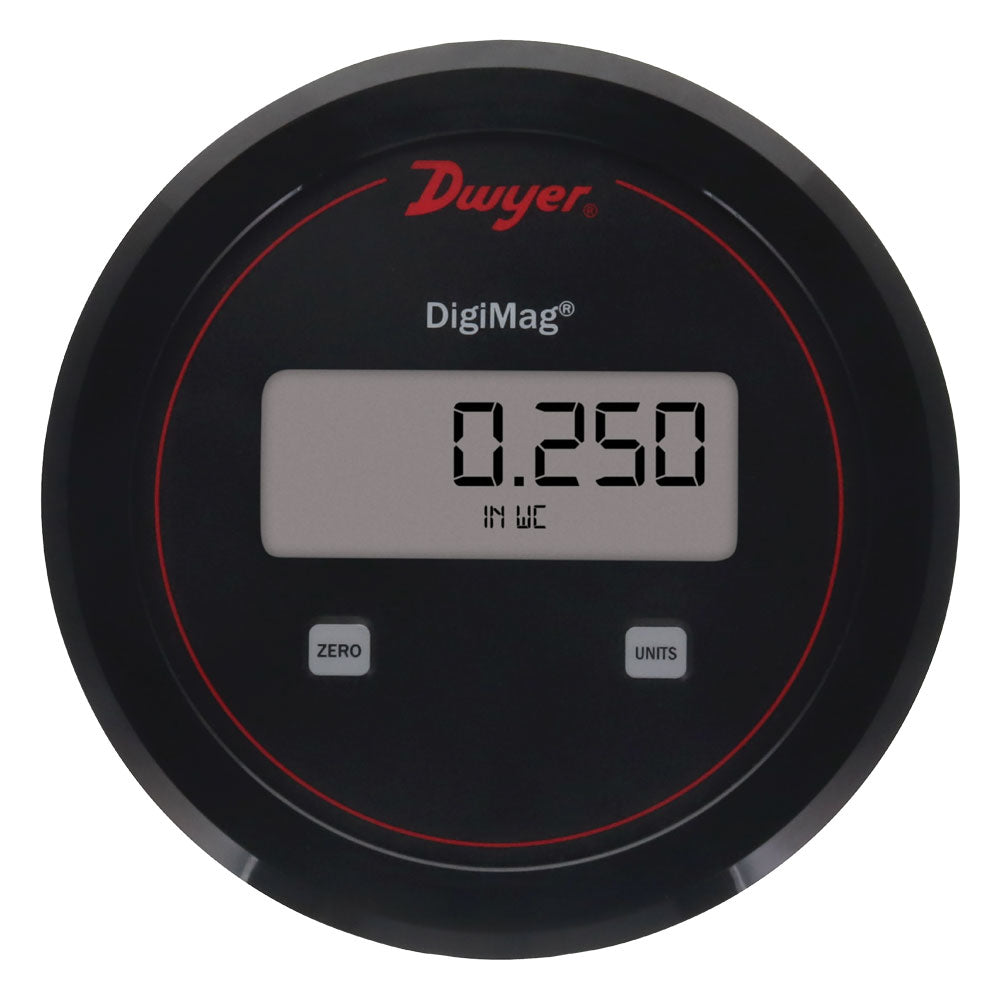

Name: DM-202
Brand: Dwyer
SKU: DWY-DM202
Price: 180.40 USD
Availability: InStock

Differential Digital Pressure Transmitter, Range 0.25-0-0.25 Inch w.c

$180.40

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series DM DigiMag Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic gage. A wide range of models are available factory calibrated to specific ranges. The polycarbonate molded housing features integral pressure connections, which reduces installation time. Digital push-button zero and span simplify calibration over typical turn-potentiometers. A single push-button allows field selection of 4 to 6 engineering units, depending on the range.

Product Specifications

Name	Value
Accuracy	+/-1% FSO
Category	Pressure
Data Sheet	Download
Installation Guide	Download
Display type	LCD Display
Inv mast uid	318248
Mount type	Panel Mount
Output	4 to 20 mA
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Range	0.25-0-0.25 in w.c
Series	Dwyer
Short desc	Differential Digital Pressure Transmitter, Range 0.25-0-0.25 Inch w.c
Supplier part number	DM-202
Type	Differential Pressure Transmitter Digital
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Accuracy: ±1 Percentage FSO for all Ranges Except 0.25 Inch w.c. @ ±2 Percentage FSO, and Ranges at or Below ±0.1 Inch w.c. @ ±4 Percentage FSO', 'Features_and_Benefits_2': 'Wetted Materials: Consult Factory', 'Features_and_Benefits_3': 'Service: Air and Non-Combustible, Compatible Gases', 'Features_and_Benefits_4': 'Immediate Corrective Action Can Be Taken by Local Alerts Via the Easy-to-Read LCD Display', 'Features_and_Benefits_5': 'Reduced installation time through zero and span controls that provides quick and easy calibration', 'Features_and_Benefits_6': 'Reduces Upgrade Installation Costs and Simplifies Field Upgrade from a Magnehelic Gage, as Both Use the Same Diameter Cutout', 'Features_and_Benefits_7': 'Housing Material: Polycarbonate', 'Features_and_Benefits_8': 'Application: Differential Pressure Across Filters, Fan Control, Static Pressures in Ducts or Buildings, Room Pressurization Monitoring', 'Features_and_Benefits_9': 'Fast and Easy Setup and Calibration with Push-Button Zero and Span Controls', 'Features_and_Benefits_10': 'Thermal Effect: 0.036 Percentage FS/deg C (0.02 Percentage FS/deg F)'}
