Data Center Products  | SKU: DM-002

DM-002 | Dwyer | Pressure

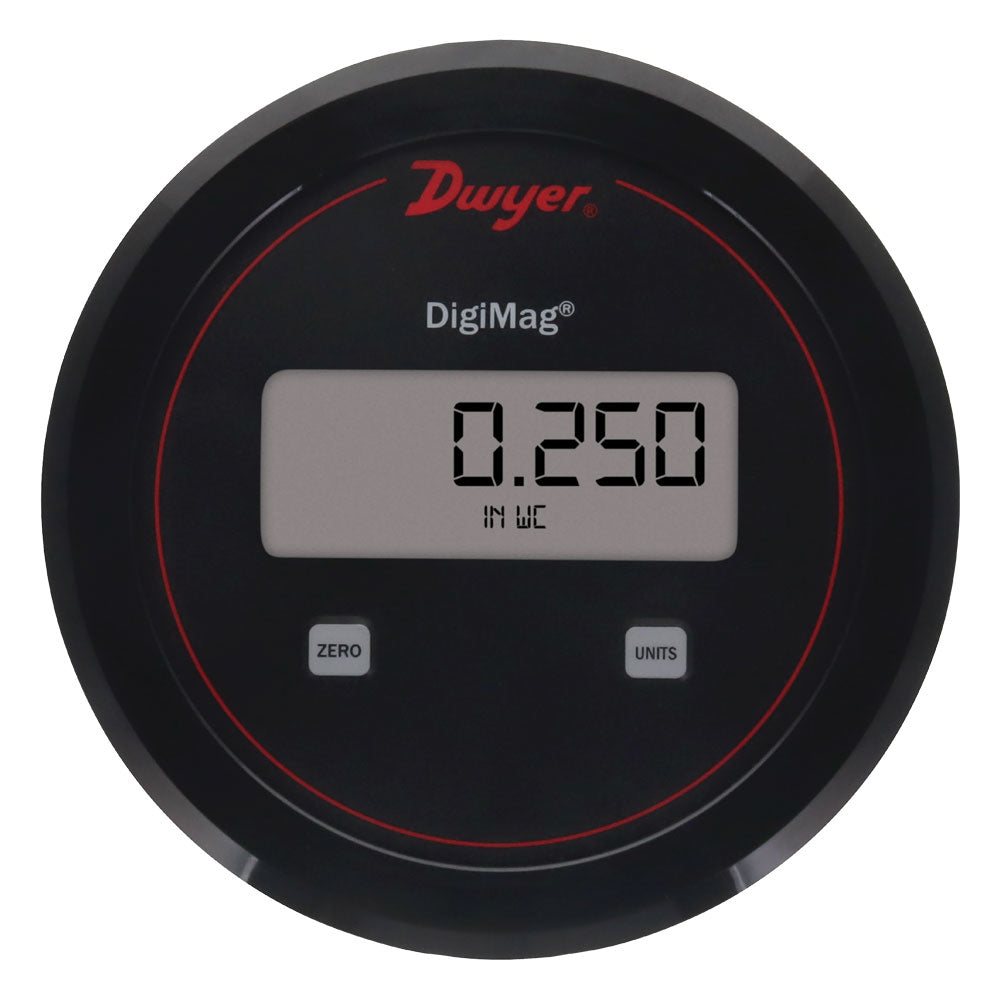

Dwyer, DM Series DigiMag Differential Digital Pressure Transmitter, 0-0.25 Inch w.c DM-002
$225.50
Shipping calculated at checkout.

DM-002 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Same Size as Standard Magnehelic Differential Pressure Gage. The Series DM DigiMag Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic gage. A wide range of models are available factory calibrated to specific ranges. The polycarbonate molded housing features integral pressure connections, which reduces installation time. Digital push-button zero and span simplify calibration over typical turn-potentiometers. A single push-button allows field selection of 4 to 6 engineering units, depending on the range. WARNING: This Product can Expose you to Styrene a Chemical Known to the State of California to Cause Cancer and Bisphenol A (BPA) a Chemical Known to the State of California to Cause Reproductive Toxicity.

Product Specifications

Name Value
Category Pressure Gauges
Connection type Screw-type Terminals
Data Sheet Download
Installation Guide Download
Display name 1 Data Sheet
Display name 2 Catalog Sheet
Features and benefits Loop Resistance: 0 to 1250 Ohm Max. | Housing Material - Polycarbonate | Current Consumption: 21 mA Max., Process Connections: Male ports on side for 1/8 Inch, 3/16 Inch, 1/4 Inch, 5 Millimeter, 6 Millimeter ID Flexible Tubing | Accuracy: +/- 1 Percentage FSO for All Ranges Except 0.25 Inch w.c, +/- 2 Percentage FSO, and Ranges at or Below +/- 0.1 Inch w.c, +/- 4 Percentage FSO | Reduces Upgrade Installation Costs and Simplifies Field Upgrade from a Magnehelic Gage, As Both use the Same Diameter Cutout | Immediate Corrective Action can be Taken by Local Alerts Via the Easy-To-Read LCD Display | Fast and Easy Setup and Calibration with Push-Button Zero and Span Controls | Reduced Installation Time Through Zero and Span Controls that Provides Quick and Easy Calibration | Enclosure Rating: NEMA 4X (IP66), Mounting Orientation: Not Sensitive to Position | Applications: Differential Pressure Across Filters, Fan Control, Static Pressures in Ducts or Buildings, Room Pressurization Monitoring
P21 delete flag false
Pressure range 0-0.25 Inch W.C.
Product category Pressure
Product subcategory Pressure Gauges
Restricted class id NULL
Restricted item false
Series DM Series
Short desc Dwyer, DM Series DigiMag Differential Digital Pressure Transmitter, 0-0.25 Inch w.c DM-002
Supplier part number DM-002
Ultra store sync us Yes
Vendor active Y
Vendor enabled true

Features and Benefits

Loop Resistance: 0 to 1250 Ohm Max. | Housing Material - Polycarbonate | Current Consumption: 21 mA Max., Process Connections: Male ports on side for 1/8 Inch, 3/16 Inch, 1/4 Inch, 5 Millimeter, 6 Millimeter ID Flexible Tubing | Accuracy: +/- 1 Percentage FSO for All Ranges Except 0.25 Inch w.c, +/- 2 Percentage FSO, and Ranges at or Below +/- 0.1 Inch w.c, +/- 4 Percentage FSO | Reduces Upgrade Installation Costs and Simplifies Field Upgrade from a Magnehelic Gage, As Both use the Same Diameter Cutout | Immediate Corrective Action can be Taken by Local Alerts Via the Easy-To-Read LCD Display | Fast and Easy Setup and Calibration with Push-Button Zero and Span Controls | Reduced Installation Time Through Zero and Span Controls that Provides Quick and Easy Calibration | Enclosure Rating: NEMA 4X (IP66), Mounting Orientation: Not Sensitive to Position | Applications: Differential Pressure Across Filters, Fan Control, Static Pressures in Ducts or Buildings, Room Pressurization Monitoring
