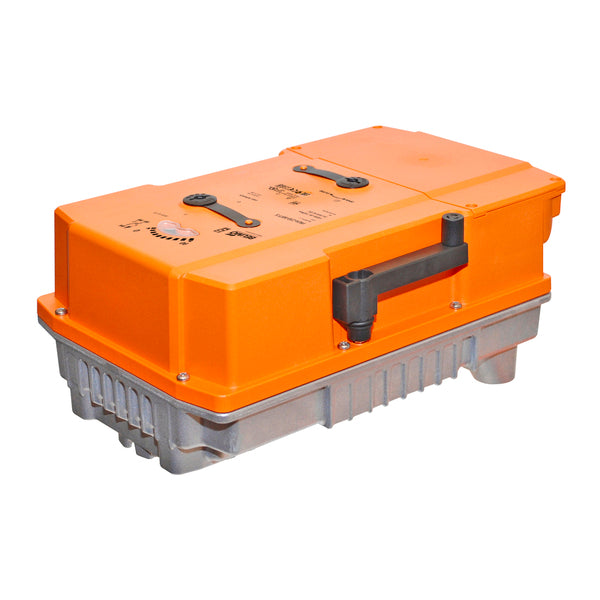

Belimo | SKU: PRXUP-MFT-T-200

PRXUP-MFT-T-200 | Belimo | Control Valves & Actuators

Name: PRXUP-MFT-T-200
Brand: Belimo
SKU: BEL-PRXUPMFTT200
Price: 3384.01 USD
Availability: InStock

Configurable Valve Actuator, Non Fail-Safe, 24-240 VAC/24-125 VDC, 2-10 V, 2 x SPDT, Terminals, BACnet MS/TP, Modbus RTU, MP-Bus, Mft/Programmable, NEMA 4X

$3,384.01 $7,520.00

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Product Specifications

Name	Value
Ambient temperature	-22...122°F [-30...50°C]
Category	Valve
Configuration	2 SPDT Auxiliary Switches
Control input	2...10 V
Control type	BACnet MS/TP, Modbus RTU, MP-Bus, 2-10 VDC, 0.5-10 VDC, MFT/Programmable
Data Sheet	Download
Installation Guide	Download
Electrical connection	Terminal blocks, (PE) Ground-Screw
Enclosure nema rating	NEMA 4X
Enclosure type	UL Enclosure Type 4X, IP66/67, NEMA 4X
Fail safe	Non Fail Safe
Inv mast uid	40117
Output signal	2...10 V
Power consumption holding	7 W
Power consumption running	20 W
Power source	24...240 VAC
Power supply	24-240 VAC/24-125 VDC
Product category	Control Valves & Actuators
Product subcategory	Spring Return Valve Actuators
Rotation	90 Deg.
Running time	35 Second/90 deg
Series	Belimo
Short desc	Configurable Valve Actuator, Non Fail-Safe, 24-240 VAC/24-125 VDC, 2-10 V, 2 x SPDT, Terminals, BACnet MS/TP, Modbus RTU, MP-Bus, Mft/Programmable, NEMA 4X
Supplier part number	PRXUP-MFT-T-200
Torque	1400 in-lbs (160Nm)
Type	Configurable Electric Valve Actuator
Va rating	with 24 V 24 VA / with 240 V 56 VA
Variant weight	13

Features and Benefits

{'Features_and_Benefits_1': 'Power Consumption for Wire Sizing: with 24 V 20 VA / with 240 V 52 VA', 'Features_and_Benefits_2': 'Auxiliary Switches: 2 x SPDT', 'Features_and_Benefits_3': 'Direction of Motion Motor: Reversible with App', 'Features_and_Benefits_4': 'Manual Override: 7mm Hex Crank, Supplied', 'Features_and_Benefits_5': 'Running Time Range (Motor): 30-120 Seconds', 'Features_and_Benefits_6': 'Protection Category: IP66/67', 'Features_and_Benefits_7': 'Degree of Protection NEMA: NEMA 4X'}
