Belimo | SKU: LF230 US

LF230 US | Belimo | Dampers & Actuators

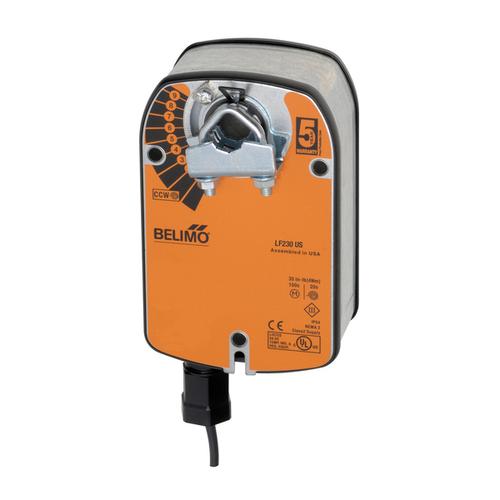

Name: LF230 US
Brand: Belimo
SKU: BEL-LF230US
Price: 357.30 USD
Availability: InStock

Damper Actuator, 35 Inch-lb (4 Nm), Spring Return, AC 230 V, On/Off

$357.30 $794.00

Shipping calculated at checkout.

In stock (2 units)

Usually ships next day

FREE SHIPPING

Description

The LF series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides consistent torque to the damper with, and without, power applied to the actuator.

Product Specifications

Name	Value
Ambient temperature	-22...122°F [-30...50°C]
Category	Damper
Control input	On/Off (2-Position)
Control type	On/Off (2-Position)
Data Sheet	Download
Installation Guide	Download
Electrical connection	Cable
Enclosure nema rating	NEMA 2
Enclosure type	NEMA 2
Fail safe	Spring Return
Inv mast uid	147924
Power consumption holding	3 W
Power consumption running	5 W
Power source	100...240 VAC
Power supply	230 VAC
Product category	Dampers & Actuators
Product subcategory	Spring Return Damper Actuators
Rotation	Selectable by cw/ccw mounting
Running time	MFT (20 to 300 Second)
Running time fail safe	25 s
Shaft diameter	3/8...1/2 in round, centers on 1/2 in
Short desc	Damper Actuator, 35 Inch-lb (4 Nm), Spring Return, AC 230 V, On/Off
Supplier part number	LF230 US
Torque	35 in-lbs
Type	Rotary Damper Actuator - Fail-Safe
Va rating	6.5 VA
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': '3 ft, 18 GA appliance cable, 1/2" conduit connector', 'Features_and_Benefits_2': '7 VA', 'Features_and_Benefits_3': 'LF230 US'}
