Belimo  | SKU: F7150-150SHP+SY4-230MFT

F7150-150SHP+SY4-230MFT | Belimo | Control Valves & Actuators

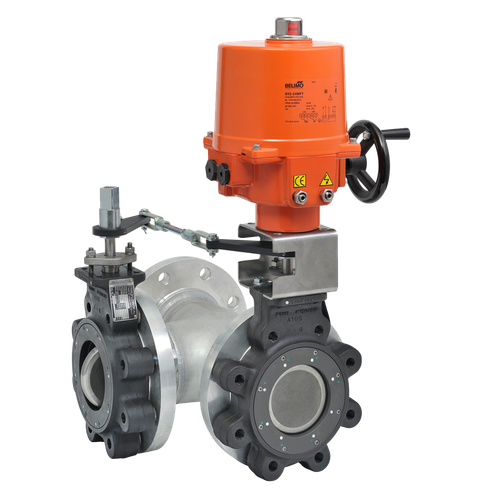

Butterfly Valve, 6 Inch, 3-Way Mixing/Diverting, 1103Cv, 230V, Non Fail-Safe
$10,408.09 $23,129.00
Shipping calculated at checkout.

F7150-150SHP+SY4-230MFT is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Product Specifications

Name Value
Ambient temperature -22...149°F [-30...65°C]
Application chilled, hot water, up to 60% glycol, steam
Category Electric Actuator Valve Assemblies
Close off pressure 285 PSI
Connection type Terminal Block
Control input 2...10 V
Control type Modulating (0–10V / 4–20mA / Configurable)
Data Sheet Download
Installation Guide Download
Electrical connection Terminal blocks
Enclosure nema rating NEMA 4X
End fitting Flange
Fail safe Non Fail Safe
Flow characteristic Modified Linear, Unidirectional
Flow coefficient 1103 Cv
Fluid type chilled or hot water, up to 60% glycol
Inv mast uid 214911
Output signal 2...10 V
Power source 230 VAC
Pressure rating ANSI Class 150
Product category Control Valves & Actuators
Product subcategory Non-Spring Return Valve Assemblies
Rotation 90 Deg.
Running time 22 s
Series Belimo
Short desc Butterfly Valve, 6 Inch, 3-Way Mixing/Diverting, 1103Cv, 230V, Non Fail-Safe
Size 6 in
Supplier part number F7150-150SHP+SY4-230MFT
Temperature range -22...400°F [-30...204°C]
Torque 400 Nm
Va rating 253 VA
Valve pattern 3-Way Mixing/Diverting
Valve type Butterfly
Variant weight 106
Voltage 230 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Carbon Steel', 'Features_and_Benefits_2': 'for use with ASME/ANSI B16.5 flanges', 'Features_and_Benefits_3': '2 to 10 VDC', 'Features_and_Benefits_4': '2 SPDT', 'Features_and_Benefits_5': '<75 seconds', 'Features_and_Benefits_6': '3560 in-lbs [400 Nm] minimum'}
