Belimo | SKU: F6150HDU+DRX24-MFT-T N4

F6150HDU+DRX24-MFT-T N4 | Belimo | Control Valves & Actuators

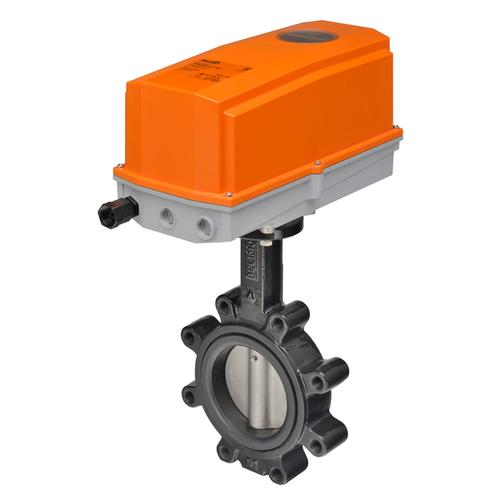

Name: F6150HDU+DRX24-MFT-T N4
Brand: Belimo
SKU: BEL-F6150HDUDRX24MFTTN4
Price: 2182.05 USD
Availability: InStock

Butterfly Valve, 6 Inch, 2-Way, 1579Cv, 24V, Non Fail-Safe

This product is no longer available

Description

Product Specifications

Name	Value
Actuator type	Electric
Ambient temperature	-22...122°F [-30...50°C]
Application	Chilled, Hot Water, up to 60% Glycol
Category	Electric Actuator Valve Assemblies
Close off pressure	50 PSI
Connection type	Screw terminal (for 22 to 12 AWG wire)
Control input	2...10 V
Control type	Modulating (0–10V / 4–20mA / Configurable)
Data Sheet	Download
Installation Guide	Download
Electrical connection	Screw terminal (for 22 to 12 AWG wire)
Enclosure nema rating	NEMA 4X
End fitting	Flange
Fail safe	Non Fail Safe
Flow characteristic	Modified Equal Percentage
Flow coefficient	1579 Cv
Fluid type	chilled or hot water, up to 60% glycol
Inv mast uid	109881
Output signal	2...10 V
Power source	24 VAC/VDC
Pressure rating	ANSI Class Consistent with 125, 232 psi CWP
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Running time	150 s
Series	Belimo
Short desc	Butterfly Valve, 6 Inch, 2-Way, 1579Cv, 24V, Non Fail-Safe
Size	6 in
Supplier part number	F6150HDU+DRX24-MFT-T N4
Temperature range	-22...250°F [-30...120°C]
Va rating	21 VA
Valve pattern	2-Way
Valve type	Butterfly
Variant weight	27.8
Voltage	24 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Ductile Iron', 'Features_and_Benefits_2': 'for use with ANSI Class 125/150 flanges', 'Features_and_Benefits_3': '2 to 10 VDC, 0.5 mA max, VDC variable', 'Features_and_Benefits_4': '150 seconds', 'Features_and_Benefits_5': '801 in-lbs [90 Nm] minimum'}
