Belimo | SKU: F6100HD+DRCX24-3-T

F6100HD+DRCX24-3-T | Belimo | Control Valves & Actuators

Name: F6100HD+DRCX24-3-T
Brand: Belimo
SKU: BEL-F6100HDDRCX243T
Price: 883.81 USD
Availability: InStock

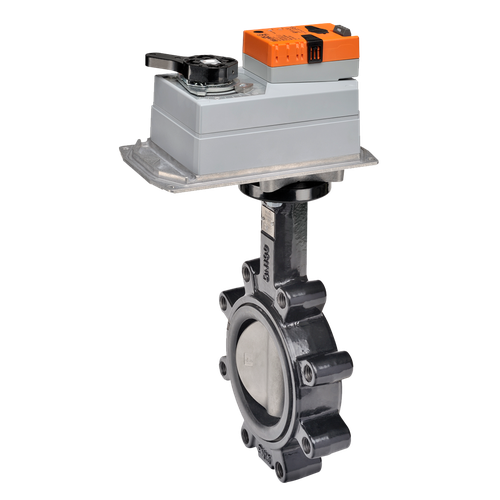

Butterfly Valve, 4 Inch, 2-Way, 600Cv, 24V, Non Fail-Safe

This product is no longer available

Description

Product Specifications

Name	Value
Actuator type	Electric
Ambient temperature	-22...122°F [-30...50°C]
Application	Chilled, Hot Water, up to 60% Glycol
Category	Electric Actuator Valve Assemblies
Close off pressure	200 PSI
Connection type	Screw terminal (for 22 to 12 AWG wire)
Control type	On/Off/Floating Point
Data Sheet	Download
Installation Guide	Download
Electrical connection	Screw terminal (for 22 to 12 AWG wire)
Enclosure nema rating	NEMA 2
End fitting	Flange
Fail safe	Non Fail Safe
Flow characteristic	Modified Equal Percentage
Flow coefficient	600 Cv
Fluid type	chilled or hot water, up to 60% glycol
Inv mast uid	39209
Power source	24 VAC/VDC
Pressure rating	ANSI Class Consistent with 125, 232 psi CWP
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Running time	35 s
Series	Belimo
Short desc	Butterfly Valve, 4 Inch, 2-Way, 600Cv, 24V, Non Fail-Safe
Size	4 in
Supplier part number	F6100HD+DRCX24-3-T
Temperature range	-22...250°F [-30...120°C]
Va rating	21 VA
Valve pattern	2-Way
Valve type	Butterfly
Variant weight	30.8
Voltage	24 VAC

Features and Benefits

{'Features_and_Benefits_1': '801 in-lbs [90 Nm] minimum', 'Features_and_Benefits_2': '35 seconds', 'Features_and_Benefits_3': 'for use with ANSI Class 125/150 flanges', 'Features_and_Benefits_4': 'Ductile Iron'}
