Belimo | SKU: B224VSS+GRCX120-SR-T N4

B224VSS+GRCX120-SR-T N4 | Belimo | Control Valves & Actuators

Name: B224VSS+GRCX120-SR-T N4
Brand: Belimo
SKU: BEL-B224VSSGRCX120SRTN4
Price: 1855.36 USD
Availability: InStock

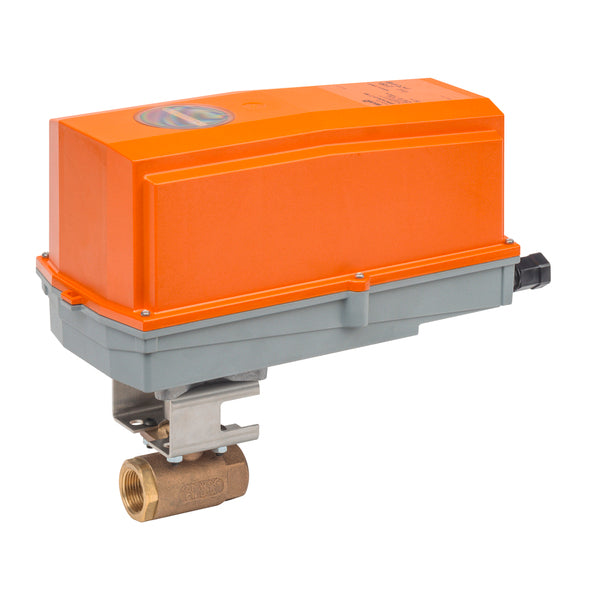

Ball Valve (VSS), 1 Inch, 2-Way, Cv 43, Valve Actuator, Non Fail-Safe, 100-240 V AC, Modulating, NEMA 4X Actuator Fitted B224VSSGRCX120-SR-TN4

$1,855.36 $4,123.00

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Product Specifications

Name	Value
Actuator type	Electric
Ambient temperature	-22...122°F [-30...50°C]
Application	Chilled or Hot Water, up to 60 Percentage Glycol, Steam
Category	Electric Actuator Valve Assemblies
Close off pressure	1000 PSI
Control type	2-10 VDC
Data Sheet	Download
Electrical connection	1/2 in NPT conduit connector, screw terminals
Enclosure nema rating	NEMA 4X
End fitting	Internal thread
Fail safe	Non Fail Safe
Flow characteristic	Modified Equal Percentage
Flow coefficient	43 Cv
Fluid type	chilled or hot water, up to 60% glycol, steam
Inv mast uid	113476
Output signal	2...10 V
Power source	100...240 VAC
Pressure rating	1500 psig WOG
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Rotation	90 Deg.
Running time	35 s
Series	Belimo
Short desc	Ball Valve (VSS), 1 Inch, 2-Way, Cv 43, Valve Actuator, Non Fail-Safe, 100-240 V AC, Modulating, NEMA 4X Actuator Fitted B224VSSGRCX120-SR-TN4
Size	1 in
Supplier part number	B224VSS+GRCX120-SR-T N4
Temperature range	-22...298°F [-30...148°C]
Valve pattern	2-Way
Valve type	Ball
Variant weight	8.7
Voltage	100-240 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Power Consumption (Running): 6 W', 'Features_and_Benefits_2': 'Modified Equal Percentage', 'Features_and_Benefits_3': '1500 psig WOG', 'Features_and_Benefits_4': 'Internal Thread', 'Features_and_Benefits_5': 'Stainless Steel Trim'}
