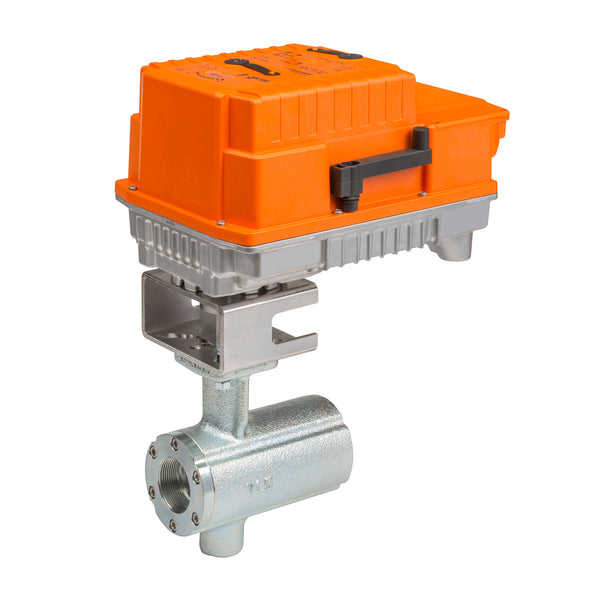

Belimo  | SKU: B2100VB-024+PKRXUP-MFT-T

B2100VB-024+PKRXUP-MFT-T | Belimo | Control Valves & Actuators

Ball Valve (VB), 1 Inch, 2-Way, ANSI Class 300, Cv 24 Configurable Valve Actuator, Electrical Fail-Safe, 24-240 V AC/24-125 V DC, 2-10 V, 2 x SPDT, Terminals, BACnet MS/TP Modbus RTU MP-Bus, Mft/Programmable Actuator Fitted B2100VB-024PKRXUP-Mft-T
$5,143.07 $11,429.00
Shipping calculated at checkout.

B2100VB-024+PKRXUP-MFT-T is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Product Specifications

Name Value
Ambient temperature -22...122°F [-30...50°C]
Application Chilled or Hot Water, up to 60 Percentage Glycol, Steam
Category Electric Actuator Valve Assemblies
Close off pressure 250 PSI
Control input 2...10 V
Control type MFT (Configurable)
Data Sheet Download
Electrical connection Terminal blocks, (PE) Ground-Screw
Enclosure nema rating NEMA 4X
End fitting NPT
Fail safe Electronic Fail Safe
Flow characteristic Equal Percentage
Flow coefficient 24 Cv
Fluid type chilled or hot water, up to 60% glycol, steam
Inv mast uid 212437
Output signal 2...10 V
Power source 24...240 VAC
Pressure rating ANSI Class 300
Product category Control Valves & Actuators
Product subcategory Non-Spring Return Valve Assemblies
Rotation 90 Deg.
Running time 35 s
Running time fail safe 30 s
Series Belimo
Short desc Ball Valve (VB), 1 Inch, 2-Way, ANSI Class 300, Cv 24 Configurable Valve Actuator, Electrical Fail-Safe, 24-240 V AC/24-125 V DC, 2-10 V, 2 x SPDT, Terminals, BACnet MS/TP Modbus RTU MP-Bus, Mft/Programmable Actuator Fitted B2100VB-024PKRXUP-Mft-T
Size 1 in
Supplier part number B2100VB-024+PKRXUP-MFT-T
Temperature range -22...380°F [-30...193°C]
Va rating with 24 V 54 VA / with 240 V 68 VA
Valve pattern 2-Way
Valve type Ball
Variant weight 24.02
Voltage 24 to 240VAC/24 to 125VDC

Features and Benefits

{'Features_and_Benefits_1': 'Auxiliary Switches: 2 x SPDT', 'Features_and_Benefits_2': 'ANSI Class 300', 'Features_and_Benefits_3': 'Power Consumption (Running): 52 W', 'Features_and_Benefits_4': 'Equal Percentage', 'Features_and_Benefits_5': 'Internal Thread', 'Features_and_Benefits_6': 'Stainless Steel Trim'}
